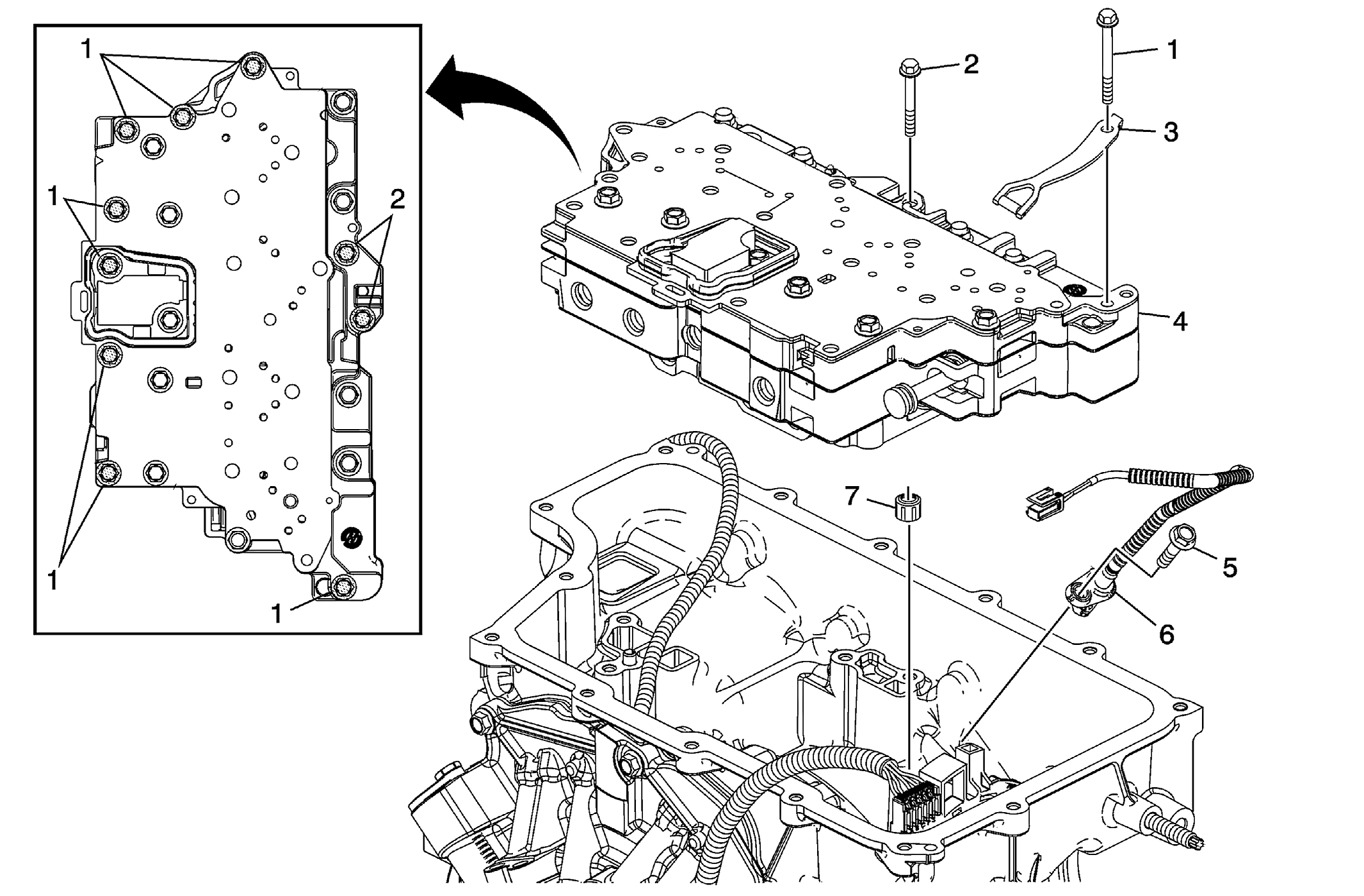

Control Valve Body Assembly and Output Speed Sensor Removal
Control Valve Body Assembly and Output Speed Sensor Removal
| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Bolt M6 x 65 (Qty: 8) |
| 2 | Control Valve Body Bolt M6 x 55 (Qty: 2) |
| 3 | Manual Shaft Detent Assembly |
| 4 | Control Valve Body Assembly |
| 5 | A/Trans Output Speed Sensor Bolt M6 x 25 |
| 6 | A/Trans Output Speed Sensor |
| 7 | 1 - 2 - 3 - 4 Clutch Fluid Passage Seal
NOTE:
The seal is not reusable. |
