Output Speed Sensor and Valve Body Installation

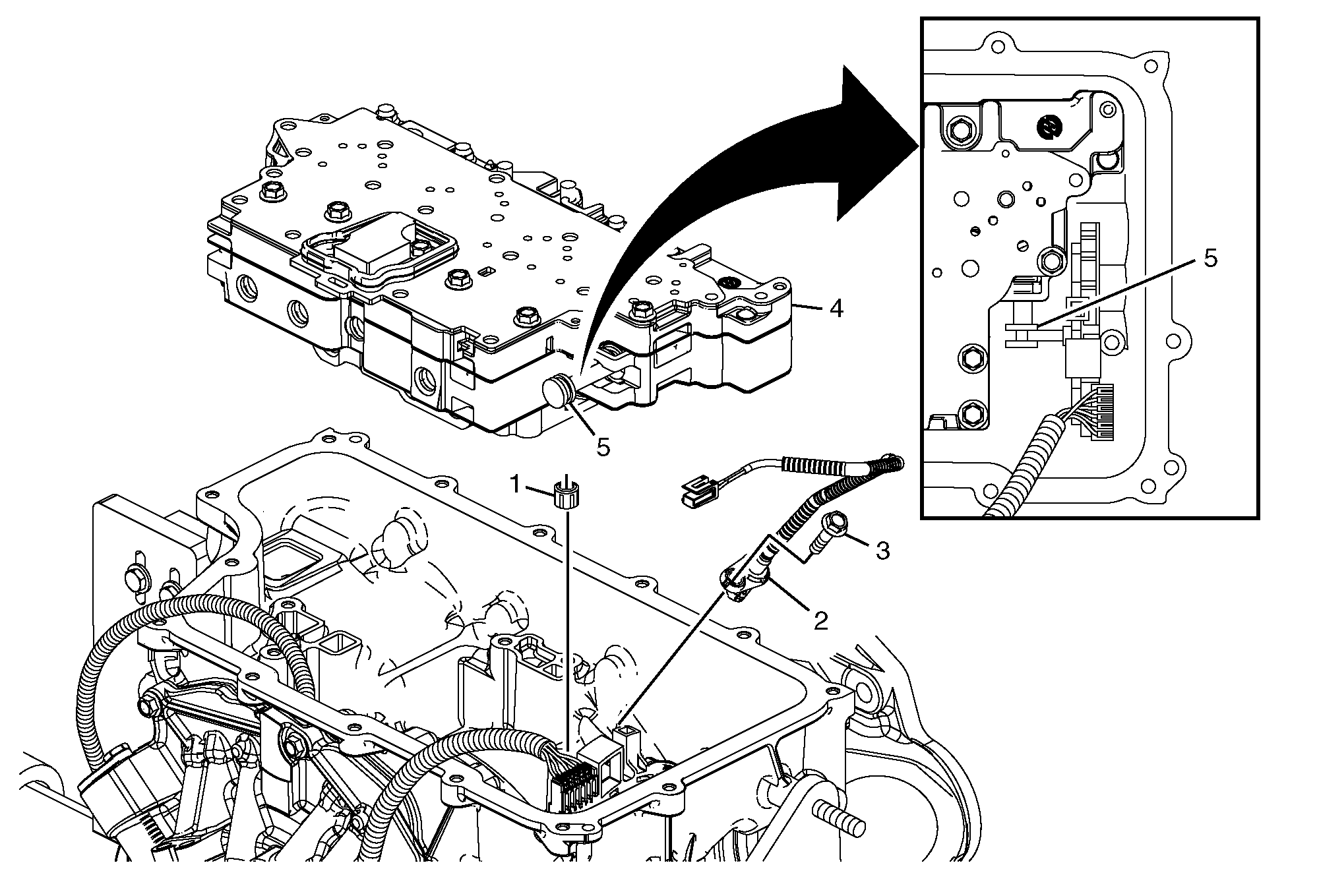

Fig 1: Output Speed Sensor And Control Valve Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1 - 2 - 3 - 4 Clutch Fluid Passage Seal
2	A/Trans Output Speed Sensor Assembly
3	A/Trans Output Speed Sensor Assembly Bolt M6 x 25 CAUTION: Refer to Fastener Caution . Tighten 12 N.m (9 lb ft)
4	Control Valve Body Assembly NOTE: Ensure the input speed sensor wiring harness is routed properly as shown and not trapped under the control valve body assembly.
5	Manual Valve NOTE: Align the manual valve to the detent lever assembly. Removing the manual shaft assembly pin will aid in aligning the manual valve to the detent lever. Install the manual shaft pin after the valve body assembly is installed using DT 41229 pin installer, if it was not installed previously. Refer to Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal . Special Tools DT 41229 Manual Shaft Pin Installer For equivalent regional tools, refer to Special Tools .
