Control Valve Body Bolts Installation
Control Valve Body Bolts Installation

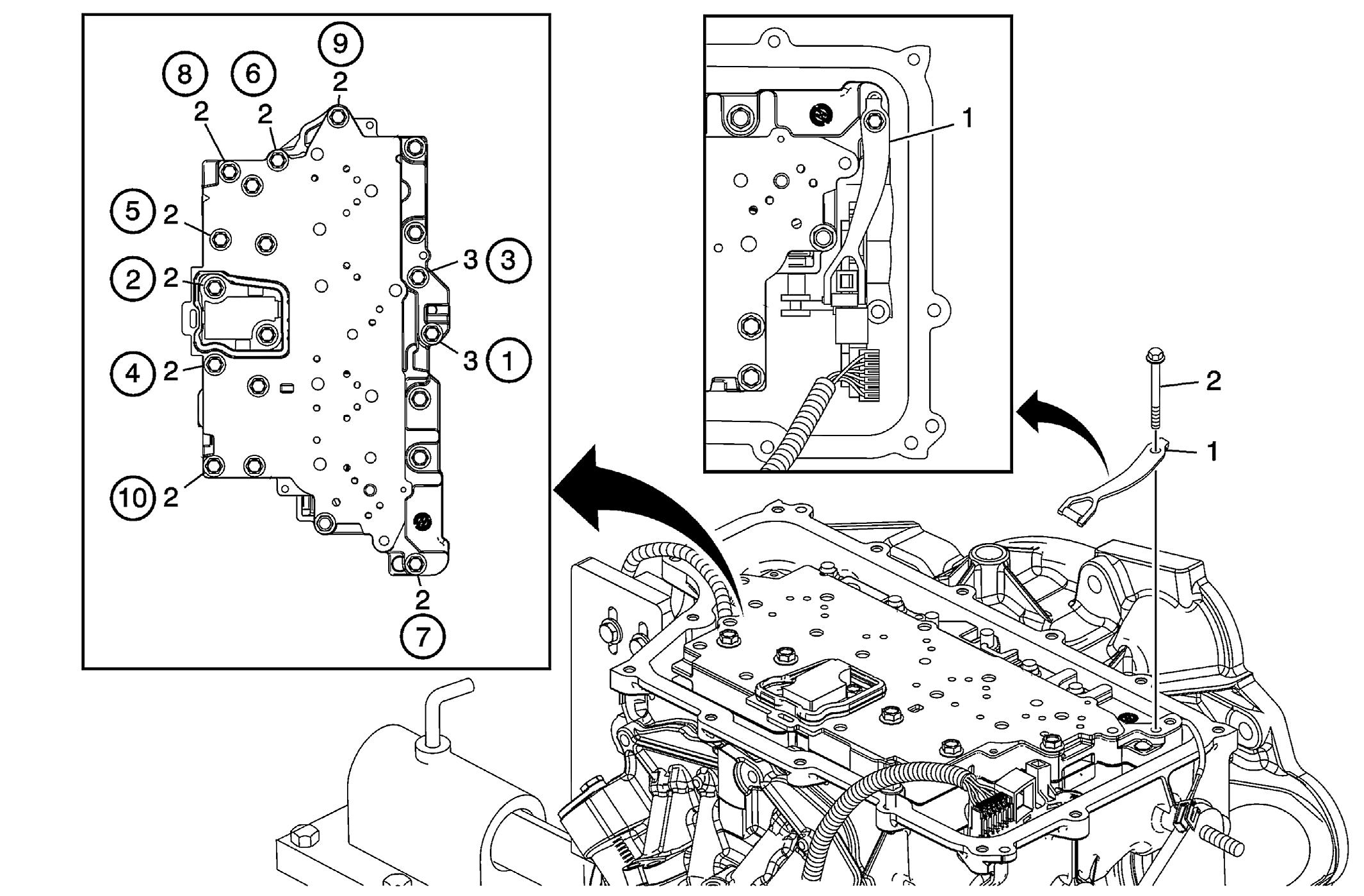

| Callout | Component Name |
|---|---|
| 1 | Manual Shaft Detent Assembly
NOTE:
Ensure proper alignment of the detent assembly to the detent lever assembly with position switch while tightening the bolt. The detent assembly can move and hit the valve body assembly that could cause improper engagement with the detent lever assembly. |
| 2 | Control Valve Body Bolt M6 x 65 (Qty: 8)
CAUTION:
Refer to Fastener Caution . Procedure Tighten in sequence. Tighten 12 N.m (9 lb ft). |
| 3 | Control Valve Body Bolt M6 x 55 (Qty: 2) Procedure Tighten in sequence. Tighten 12 N.m (9 lb ft). |
