Input Speed Sensor Installation
Input Speed Sensor Installation

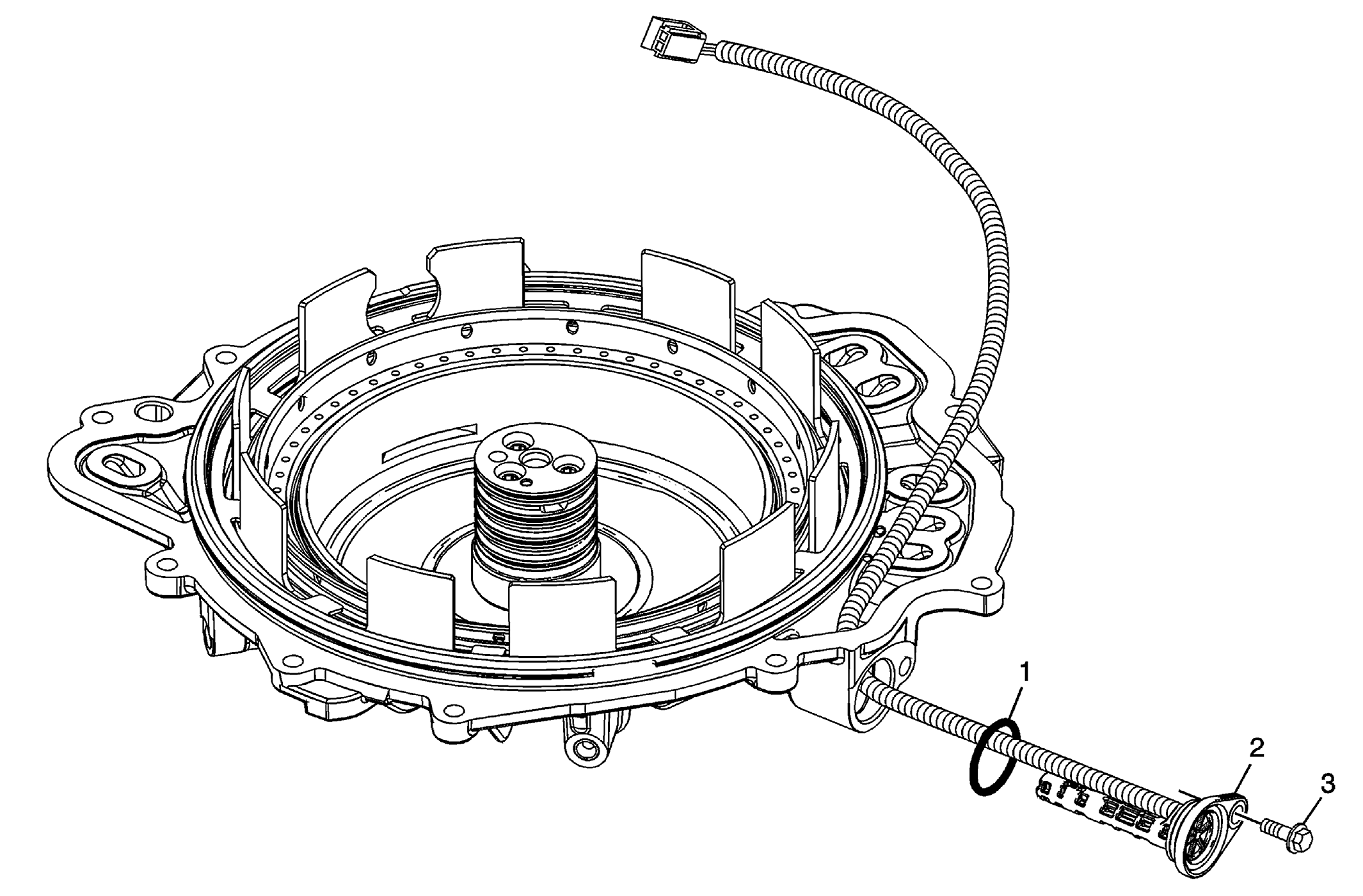

| Callout | Component Name |
|---|---|
| 1 | Input Speed Sensor Seal |
| 2 | A/Trans Input Speed Sensor Assembly |
| 3 | A/Trans Input Speed Sensor Bolt M6 x 25
CAUTION:
Refer to Fastener Caution . Procedure Apply threadlocker or equivalent to the input speed sensor bolt. Refer to Adhesives, Fluids, Lubricants, and Sealers .
NOTE:
The seal is coated with a dry lubricant. If the coating is missing, lubricate the seal with automatic transmission fluid prior to installation. Tighten 9 N.m (7 lb ft) |
