2-6 and Low-Reverse Piston Function Inspection
2-6 and Low-Reverse Piston Function Inspection

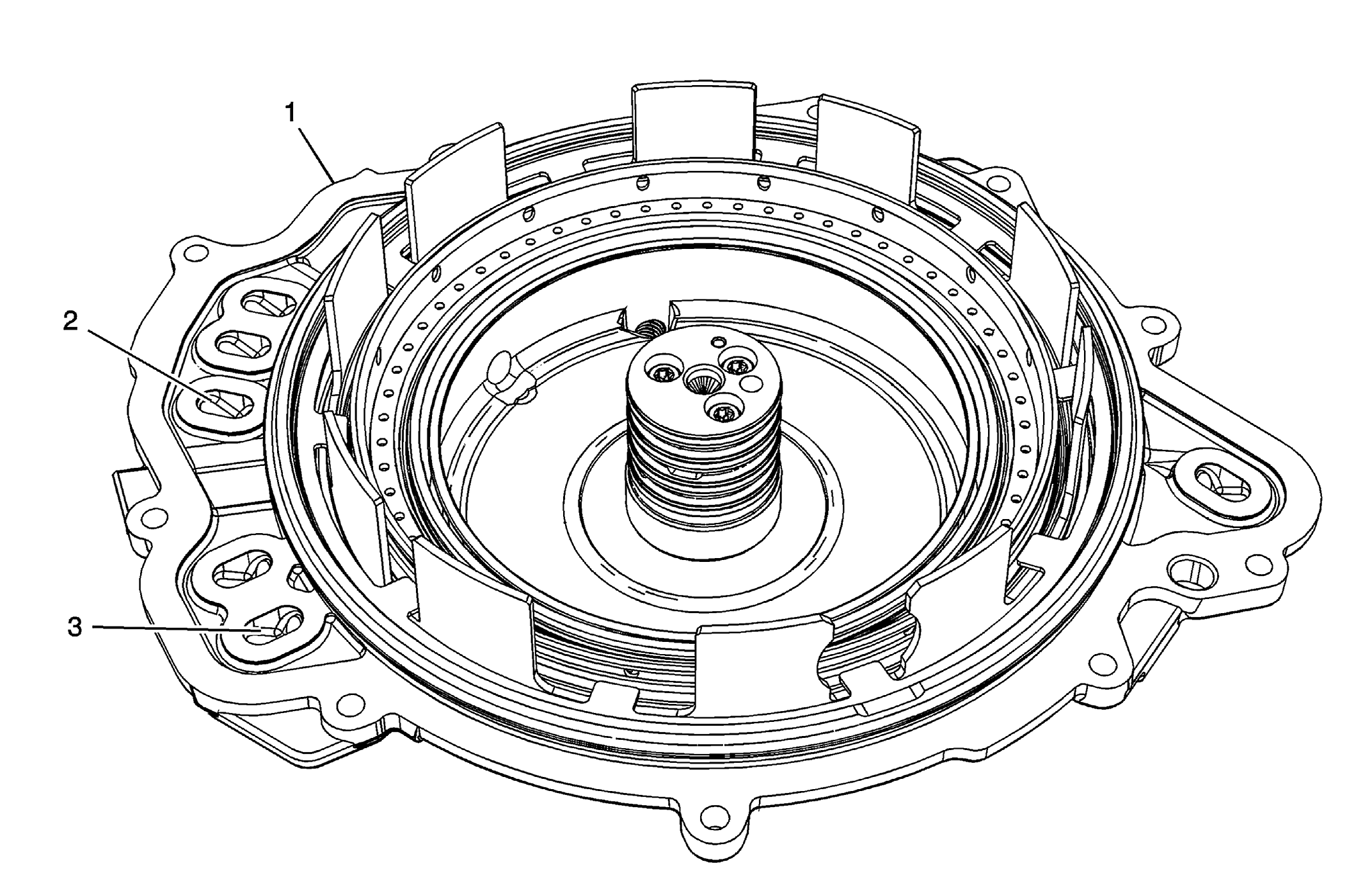

| Callout | Component Name |
|---|---|
| 1 | Case Cover Assembly
NOTE:
The fluid seal rings should be in place and not damaged. |
| 2 | 2-6 Clutch Feed Passage
CAUTION:
Regulate the air pressure to 40 psi maximum. High pressure could cause the piston to over travel and damage the piston seals. Procedure Apply shop air to the 2-6 clutch feed. Observe the 2-6 piston movement.
NOTE:
Minimal piston movement and excessive air leaking could indicate damage to the 2-6 piston seals or improper assembly. |
| 3 | Low and Reverse Clutch Feed Passage
CAUTION:
Regulate the air pressure to 40 psi maximum. High pressure could cause the piston to over travel and damage the piston seals. Procedure Apply shop air to the Low and Reverse clutch feed. Observe the Low and Reverse piston movement.
NOTE:
Minimal piston movement and excessive air leaking could indicate damage to the Low and Reverse piston seals or improper assembly. |
