Heater Core Inlet Tube Replacement

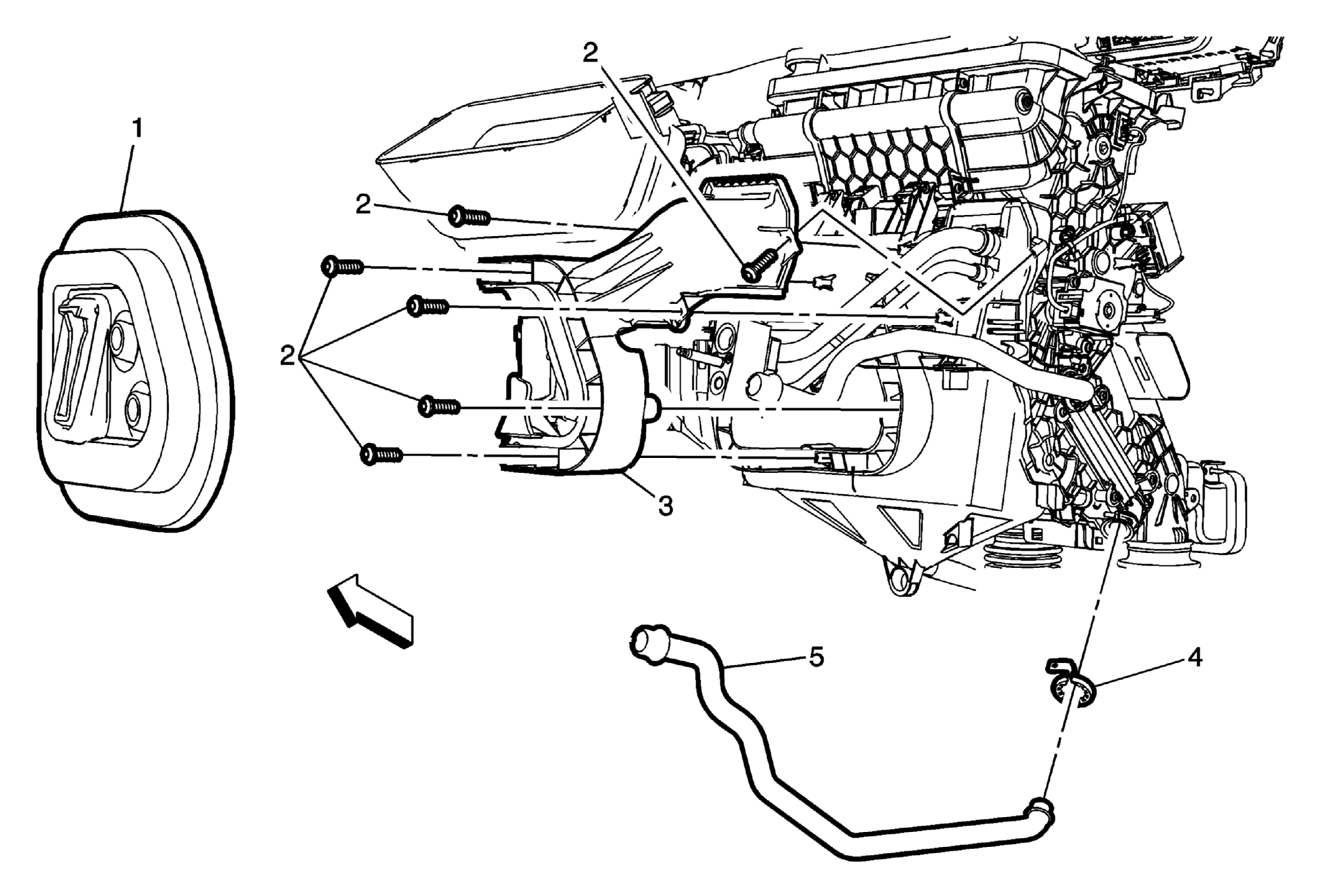

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . |
|
| 1 | Heater and Air Conditioning Evaporator Tube Seal |
| 2 | Heater and Air Conditioning Evaporator Module Cover Fasteners (Qty: 6)
CAUTION:
Refer to Fastener Caution . |
| 3 | Heater and Air Conditioning Evaporator Module Cover |
| 4 | Heater Core Inlet Tube Clamp |
| 5 | Heater Core Inlet Tube |
