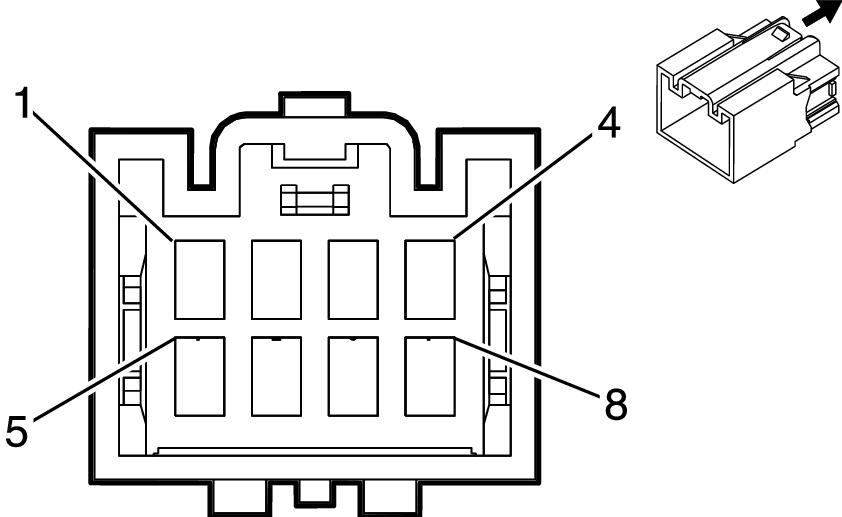

X336 Body Harness to Right Middle Window Harness
|
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-3243-40
- Service Connector: 13581036
- Description: 8-Way F 2.8 Series (L-GY)
|
Connector Part Information
- Harness Type: Right Middle Window
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/VT |
755 |
I |
- |
RAP Relay Coil Control |
1 |
0.5 |
GY/VT |
755 |
II |
- |
| 2 |
0.5 |
BK |
2050 |
I |
- |
Ground |
2 |
0.5 |
BK |
2050 |
II |
- |
| 3 |
0.5 |
YE |
6817 |
I |
- |
LED Backlight Dimming Control |
3 |
0.5 |
YE |
6817 |
II |
- |
| 4 |
0.5 |
GN/GY |
1186 |
I |
- |
Power Window Switch Right Rear Up Signal |
4 |
0.5 |
GN/GY |
1186 |
II |
- |
| 5 |
0.5 |
WH/GN |
5049 |
I |
- |
Power Window Switch Right Rear Express Signal |
5 |
0.5 |
WH/GN |
5049 |
II |
- |
| 6 |
0.5 |
BN/BU |
1188 |
I |
- |
Power Window Switch Right Rear Down Signal |
6 |
0.5 |
BN/BU |
1188 |
II |
- |
| 7 - 8 |
- |
- |
- |
- |
- |
Not Occupied |
7 - 8 |
- |
- |
- |
- |
- |
