X127 Front Suspension Harness to Front Wheel Speed Sensor Harness
|
|
- |

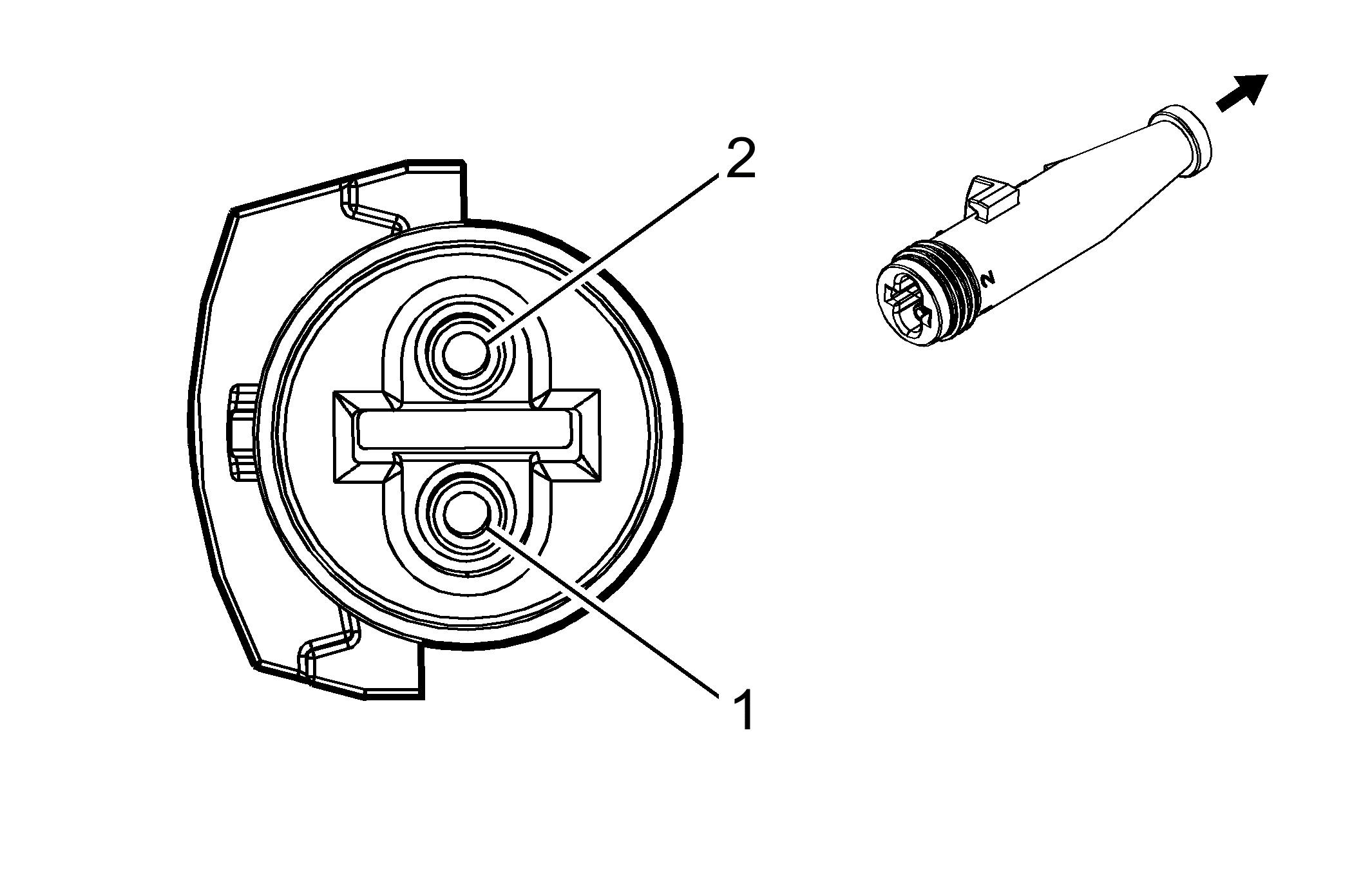

Connector Part Information
- Harness Type: Front Suspension
- OEM Connector: 24466108
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F
|
Connector Part Information
- Harness Type: Front Wheel Speed Sensor
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
1113 |
I |
- |
Left Front Damping Servo Control |
1 |
0.5 |
YE |
1113 |
II |
- |
| 2 |
0.5 |
RD |
1107 |
I |
- |
Left Front Damping Servo Control |
2 |
0.5 |
RD |
1107 |
II |
- |
