X121 Forward Lamp Harness to Front Wheel Speed Sensor Harness
|
|
|

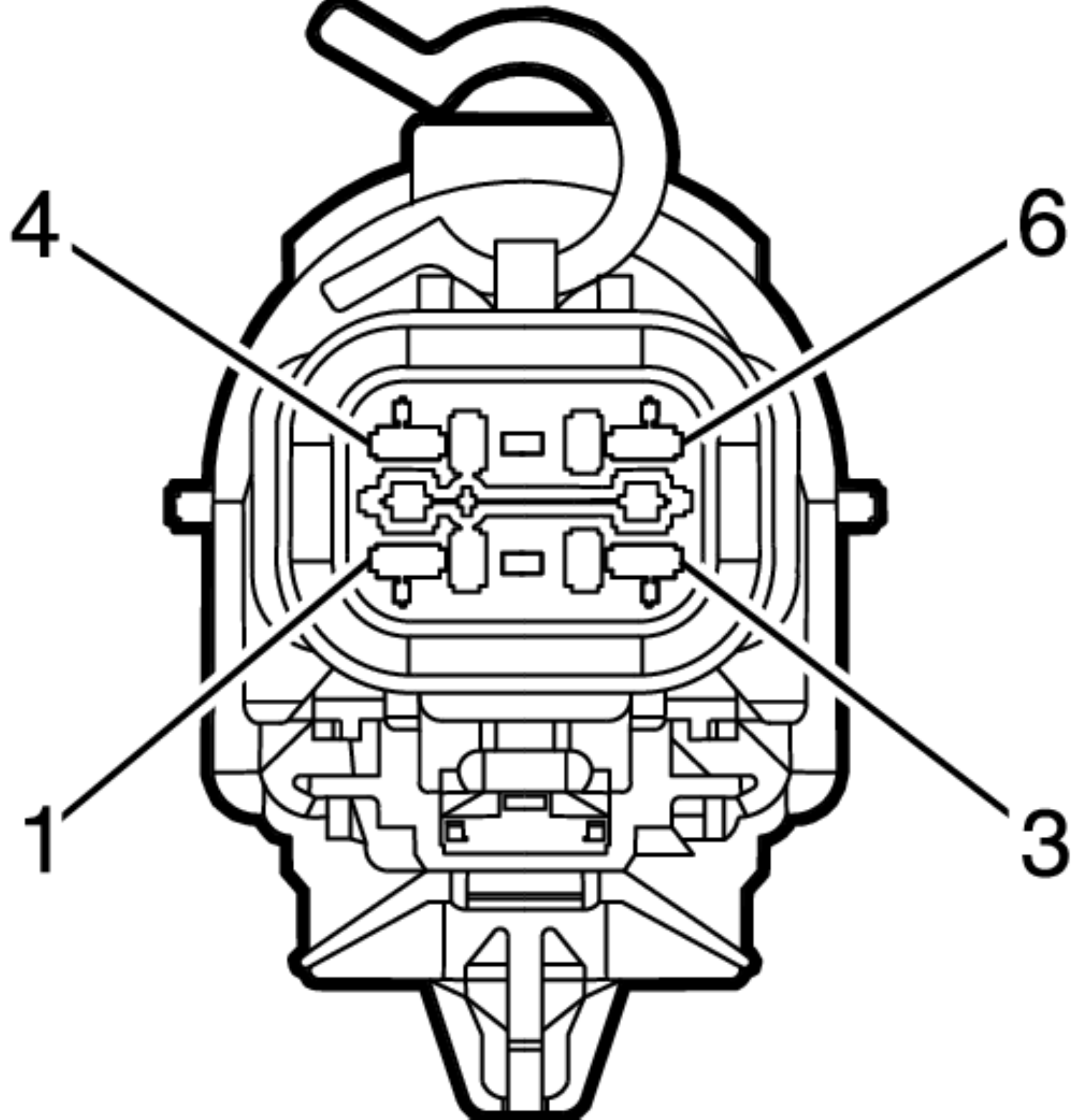

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 1452327-2
- Service Connector: 19300330
- Description: 6-Way F 2.8 Junior Power Timer Series, Sealed (GY)
|

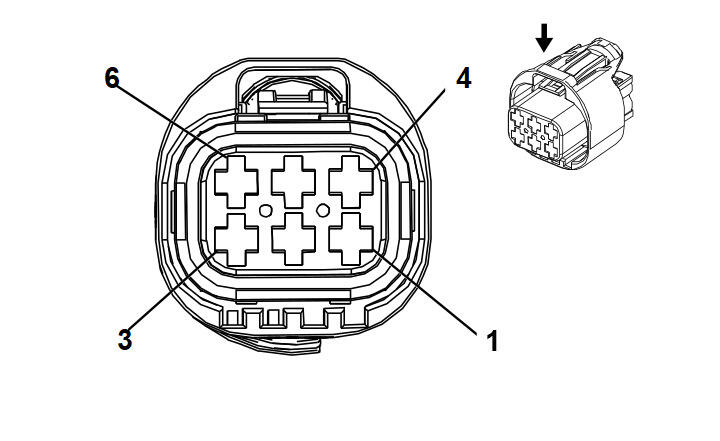

Connector Part Information
- Harness Type: Front Wheel Speed Sensor
- OEM Connector: 13156098
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M 2.8 Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY/WH |
7064 |
I |
- |
Wheel Speed Sensor Control Left Front |
1 |
0.5 |
RD |
7065 |
II |
- |
| 2 |
- |
- |
- |
- |
- |
Not Occupied |
2 |
- |
- |
- |
- |
- |
| 3 |
0.75 |
BN/WH |
1107 |
I |
- |
Left Front Damping Servo Control |
3 |
0.5 |
WH |
1116 |
II |
- |
| 4 |
0.35 |
GY |
830 |
I |
- |
Wheel Speed Sensor Signal Left Front |
4 |
0.5 |
YE |
872 |
II |
- |
| 5 |
- |
- |
- |
- |
- |
Not Occupied |
5 |
- |
- |
- |
- |
- |
| 6 |
0.75 |
GY/BU |
1113 |
I |
- |
Left Front Damping Servo Control |
6 |
0.5 |
BK |
1117 |
II |
- |
