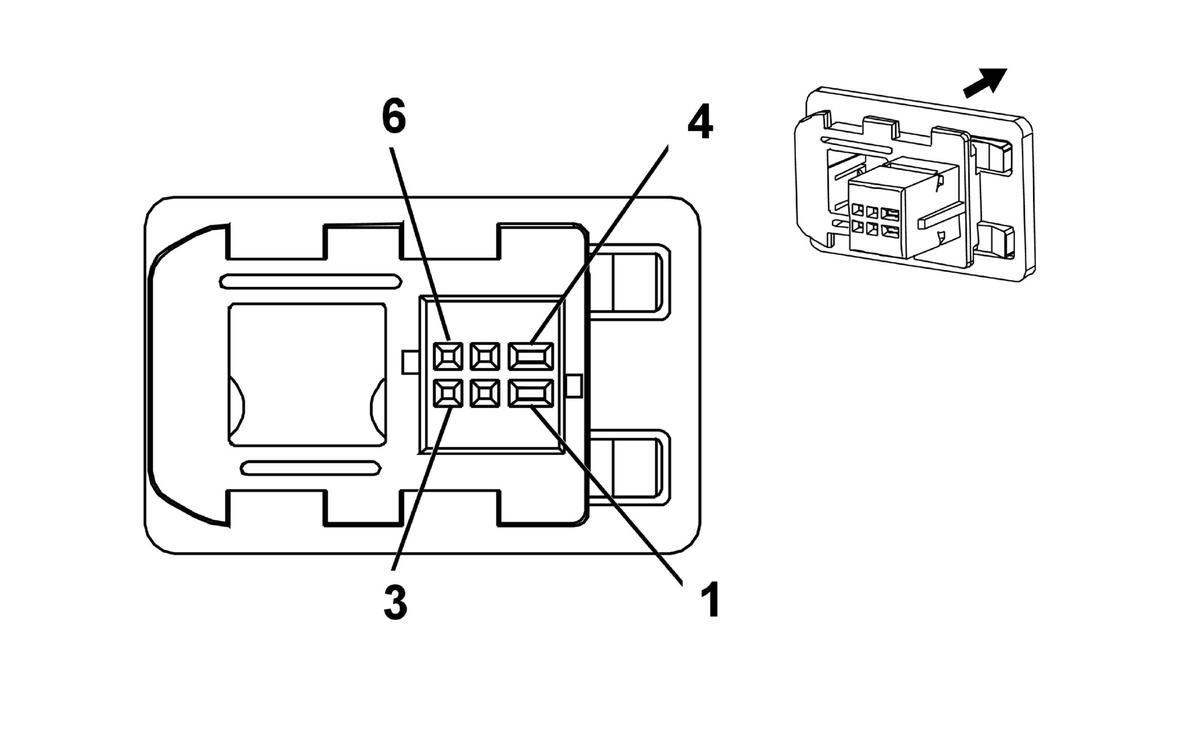

T7L Headlamp Ballast - Left X1 (T4F)
|
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: 1564611-2
- Service Connector: Service by Component Assembly - See Part Catalog
- Description: 6-Way F Mixed Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BK |
550 |
Ground |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.75 |
BK |
712 |
Left Headlamp Low Beam Supply Voltage |
I |
- |
| 5 |
0.35 |
BK |
7529 |
Linear Interconnect Network Bus 7 |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
