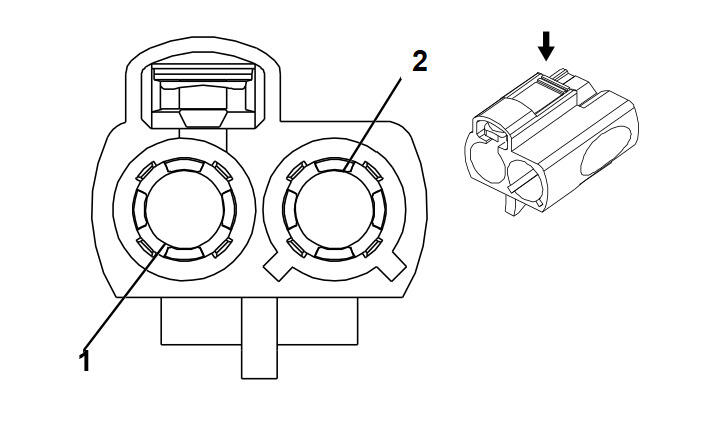

T2 Antenna - Rear Window
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 59Z067-C00-K
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
COAX |
- |
Coaxial Antenna XM Signal |
I |
- |
| 2 |
- |
COAX |
- |
Antenna RF Signal |
I |
- |
