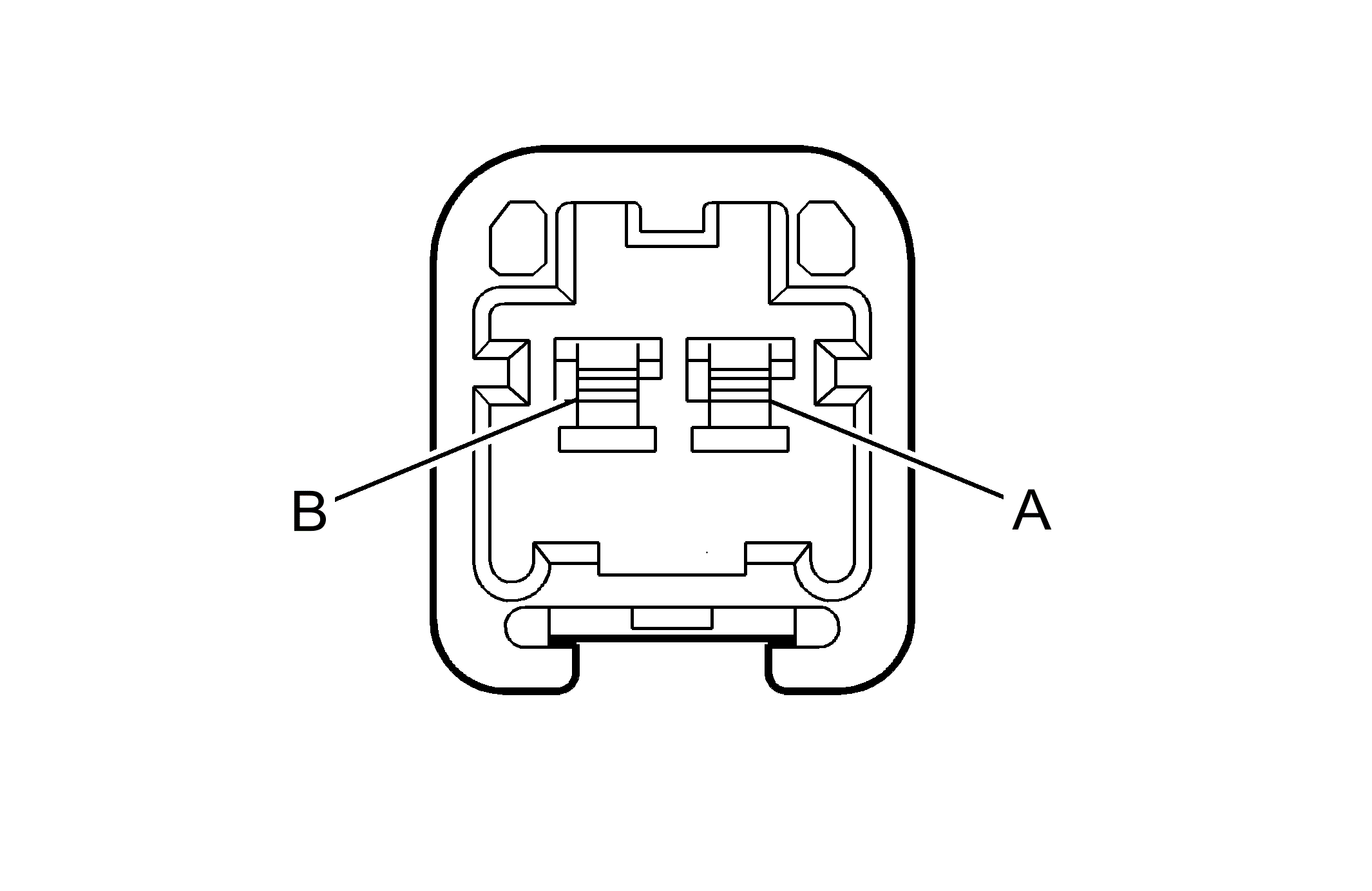

P45LR Seat Haptic Movement Motor - Driver Left Rear
|
|
Connector Part Information
- Harness Type: Driver Seat Cushion
- OEM Connector: 1999-3010002
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
YE/BN |
3037 |
Left Rear Haptic Seat Motor Control |
I |
- |
| B |
0.5 |
BK |
2150 |
Ground |
I |
- |
