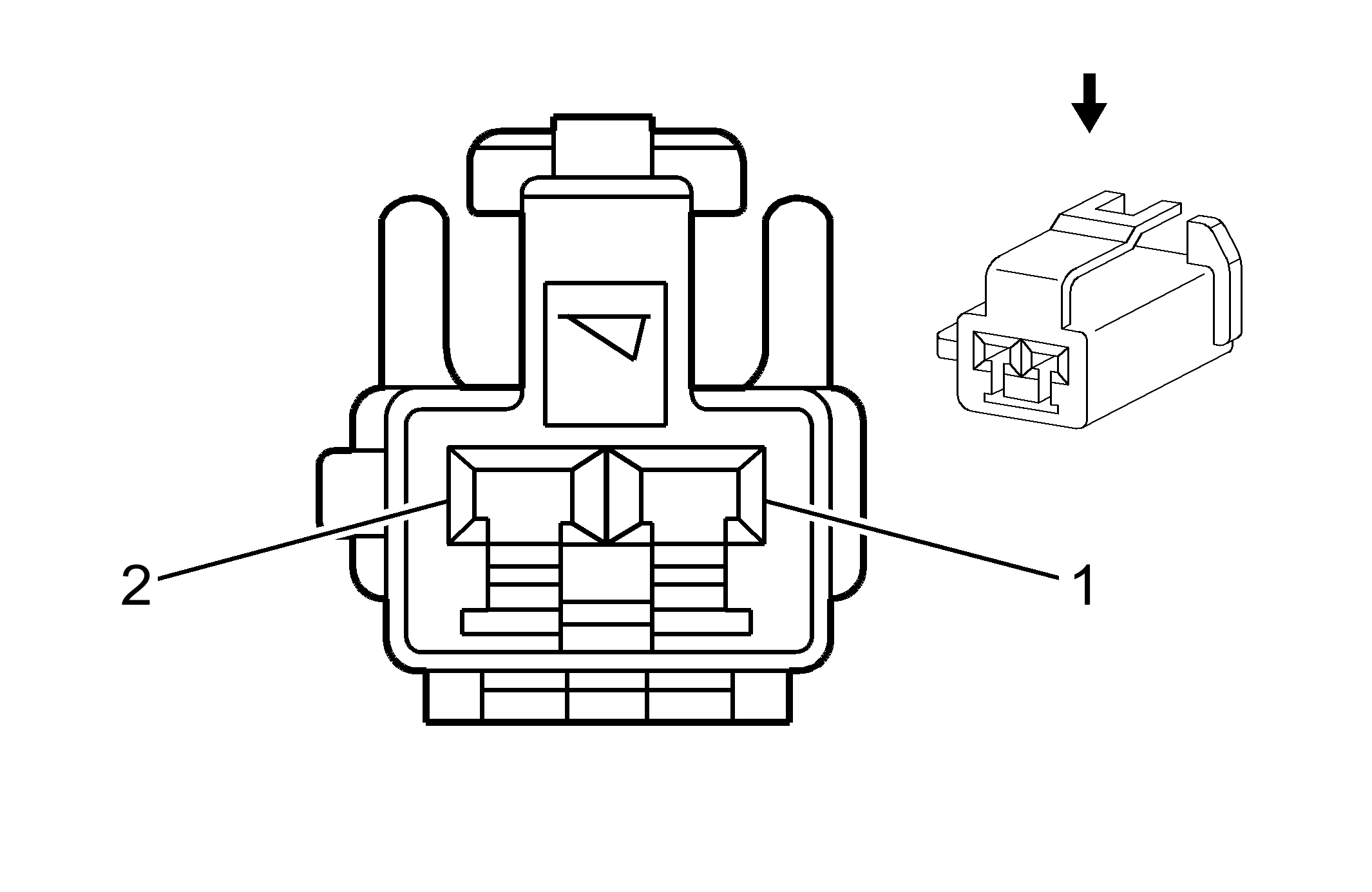

M28L High Beam Solenoid Actuator - Left (T4F)
|
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: 7323-7624-30
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN |
711 |
Left Headlamp High Beam Control |
I |
- |
| 2 |
0.5 |
BK |
1150 |
Ground |
I |
- |
