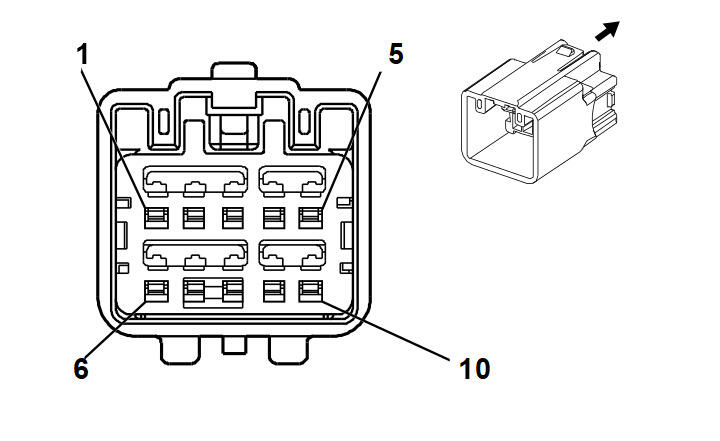

K55D Seat Blower Assembly - Driver Cushion
|
|
Connector Part Information
- Harness Type: Driver Seat Cushion
- OEM Connector: 7282-6455-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way M YESC Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
BK |
2150 |
Ground |
I |
- |
| 4 |
0.35 |
GN/VT |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 5 |
0.75 |
VT/BK |
1239 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 6 |
0.5 |
GN |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 7 |
0.5 |
BU |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.5 |
BK |
2150 |
Ground |
I |
- |
| 10 |
1 |
BN/VT |
2077 |
Driver Heated Seat Element Control |
I |
- |
