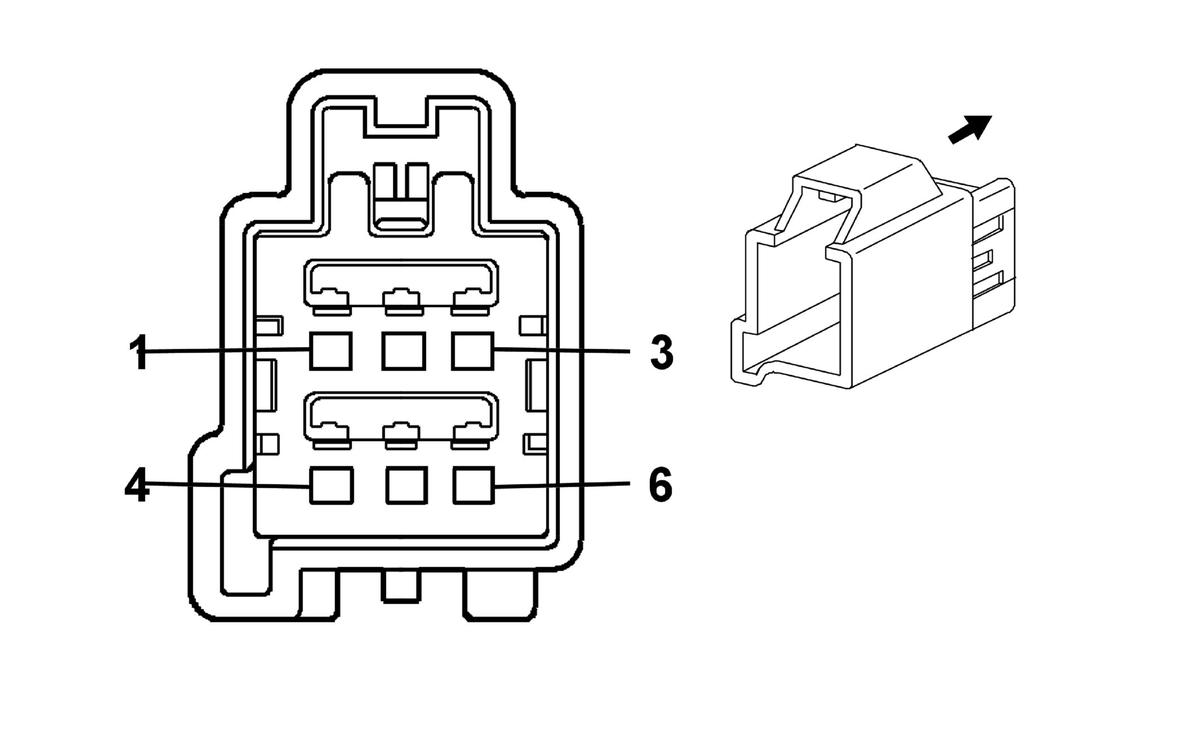

K53D Seat Blower Assembly - Driver Back
|
|
Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 7282-6454-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M 1.5 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BN |
2432 |
Driver Heated Back Element Control |
I |
- |
| 2 |
0.5 |
BK |
2150 |
Ground |
I |
- |
| 3 |
0.5 |
RD/WH |
1239 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
0.5 |
L-GN |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 5 |
0.5 |
L-BU |
5906 |
Driver Seat Vent Motor Control 1 |
I |
- |
| 6 |
0.5 |
BK/BN |
2050 |
Ground |
I |
- |
