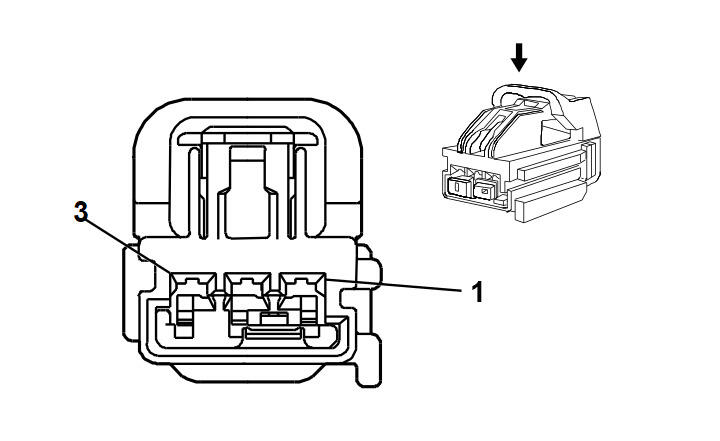

G31D Seat Lumbar/Bolster Pump - Driver
|
|
Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 7283-3440-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.5 Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT |
901 |
Driver Lumbar Pump Power |
I |
- |
| 2 |
0.5 |
BK/BN |
2150 |
Ground |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
