F107 Steering Wheel Air Bag X2
|
|

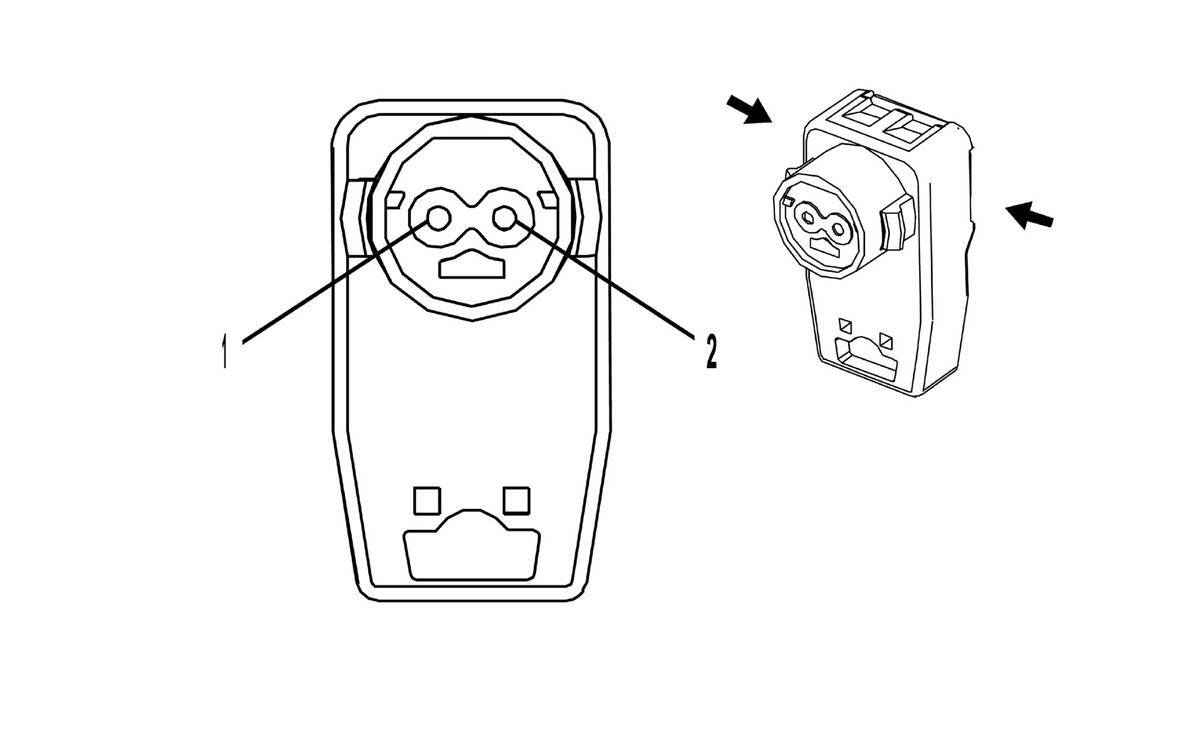

Connector Part Information
- Harness Type: Steering Wheel Air Bag Coil
- OEM Connector: 19153418
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
3023 |
Steering Wheel Module Stage 2 High Control |
I |
- |
| 2 |
0.5 |
PK |
3022 |
Steering Wheel Module Stage 2 Low Control |
I |
- |
