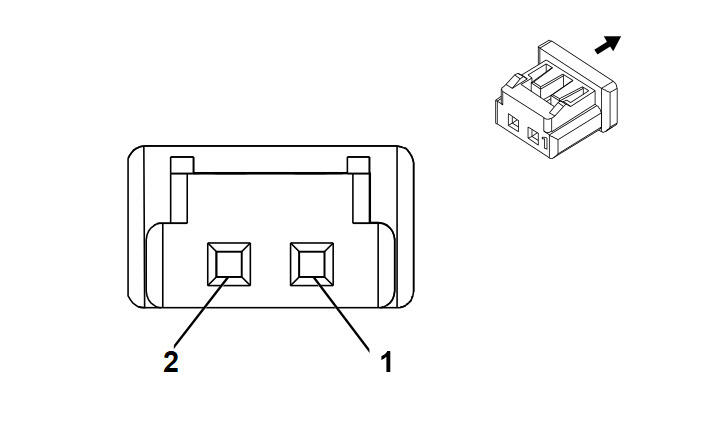

E8YD Outside Rearview Mirror Courtesy Lamp - Driver
|
|
Connector Part Information
- Harness Type: Driver Outside Rearview Mirror
- OEM Connector: 51090 - 0200
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 2.0 Pitch Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/BK |
5996 |
Driver Outside Rearview Mirror Puddle Lamp Supply Voltage |
I |
- |
| 2 |
0.5 |
BK |
850 |
Ground |
I |
- |
