B74 Manifold Absolute Pressure Sensor (LTG)
|
|

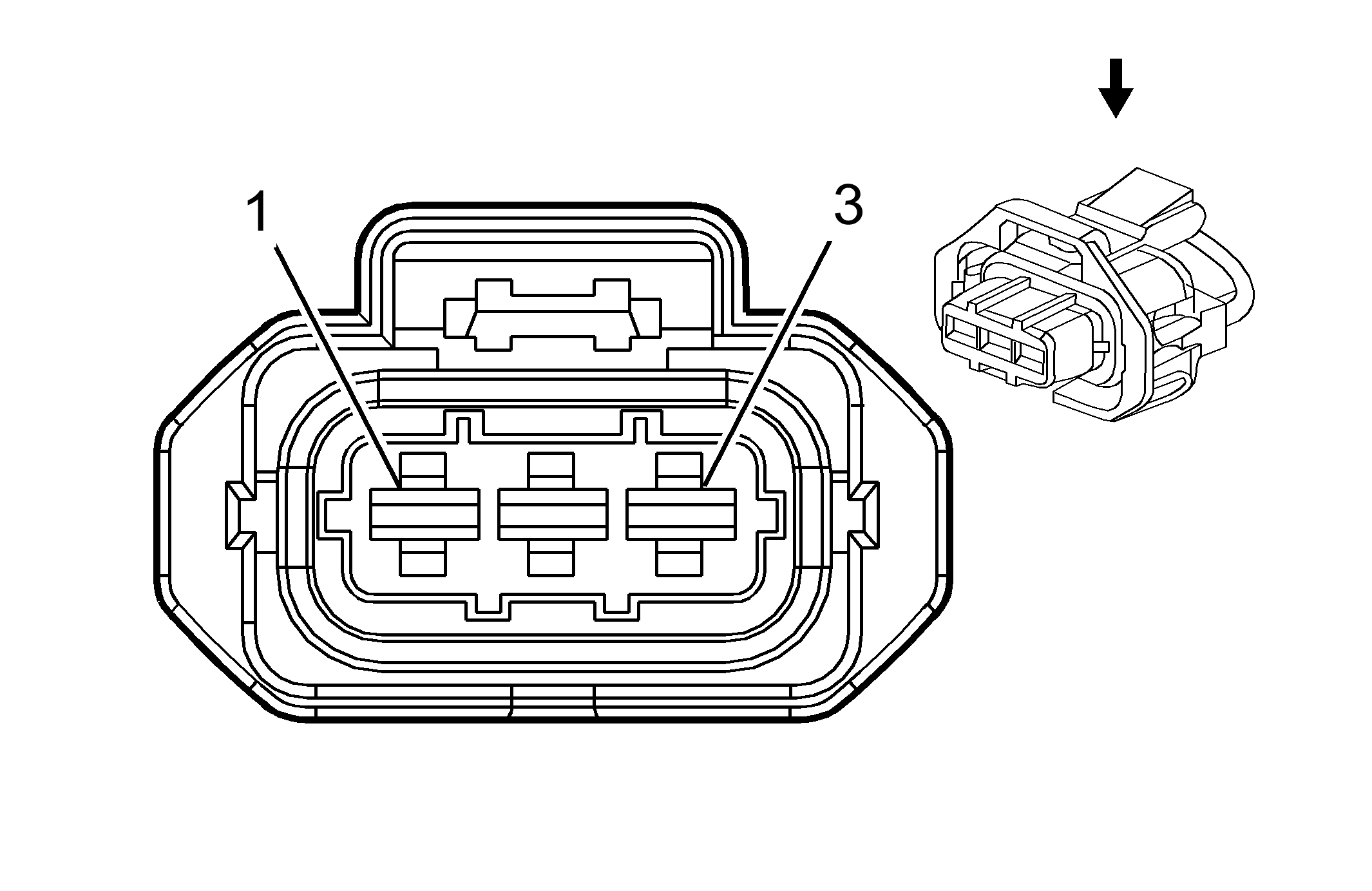

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13697268
- Service Connector: 13587295
- Description: 3-Way F 2.8 ATS Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/RD |
2704 |
Manifold Absolute Pressure Sensor 5V Reference |
I |
- |
| 2 |
0.5 |
BK/GN |
469 |
Manifold Absolute Pressure Sensor Low Reference |
I |
- |
| 3 |
0.5 |
GN/WH |
432 |
Manifold Absolute Pressure Sensor Signal |
I |
- |
