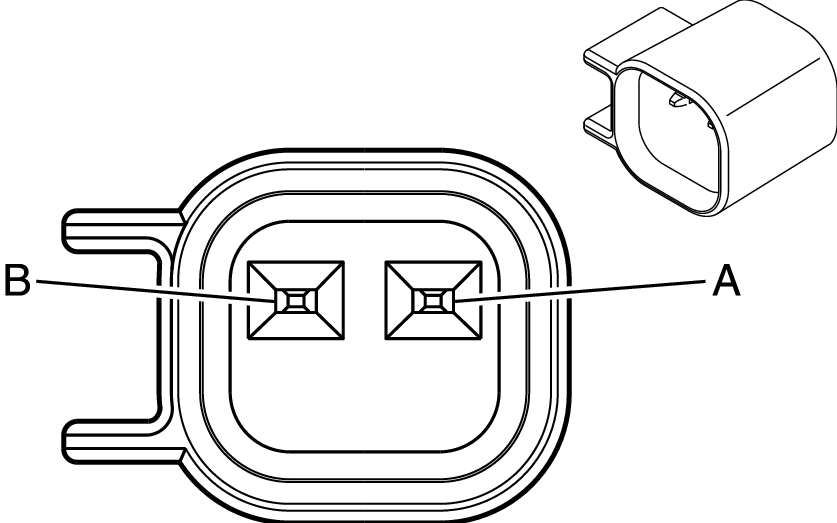

B5RR Wheel Speed Sensor - Right Rear (J64-UGN)

Connector Part Information Harness Type: Right Rear Suspension OEM Connector: 15354900 Service Connector: Service by Harness - See Part Catalog Description: 2-Way F 150 Metri-Pack Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	Not Available	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
A	0.5 0.5	WH GY/YE	7128 7128	Wheel Speed Sensor Control Right Rear Wheel Speed Sensor Control Right Rear	I I	-(UGN/UVZ/UGQ) UGN/UVZ/UGQ
B	0.5 0.5	BK VT	882 882	Wheel Speed Sensor Signal Right Rear Wheel Speed Sensor Signal Right Rear	I I	-(UGN/UVZ/UGQ) UGN/UVZ/UGQ
