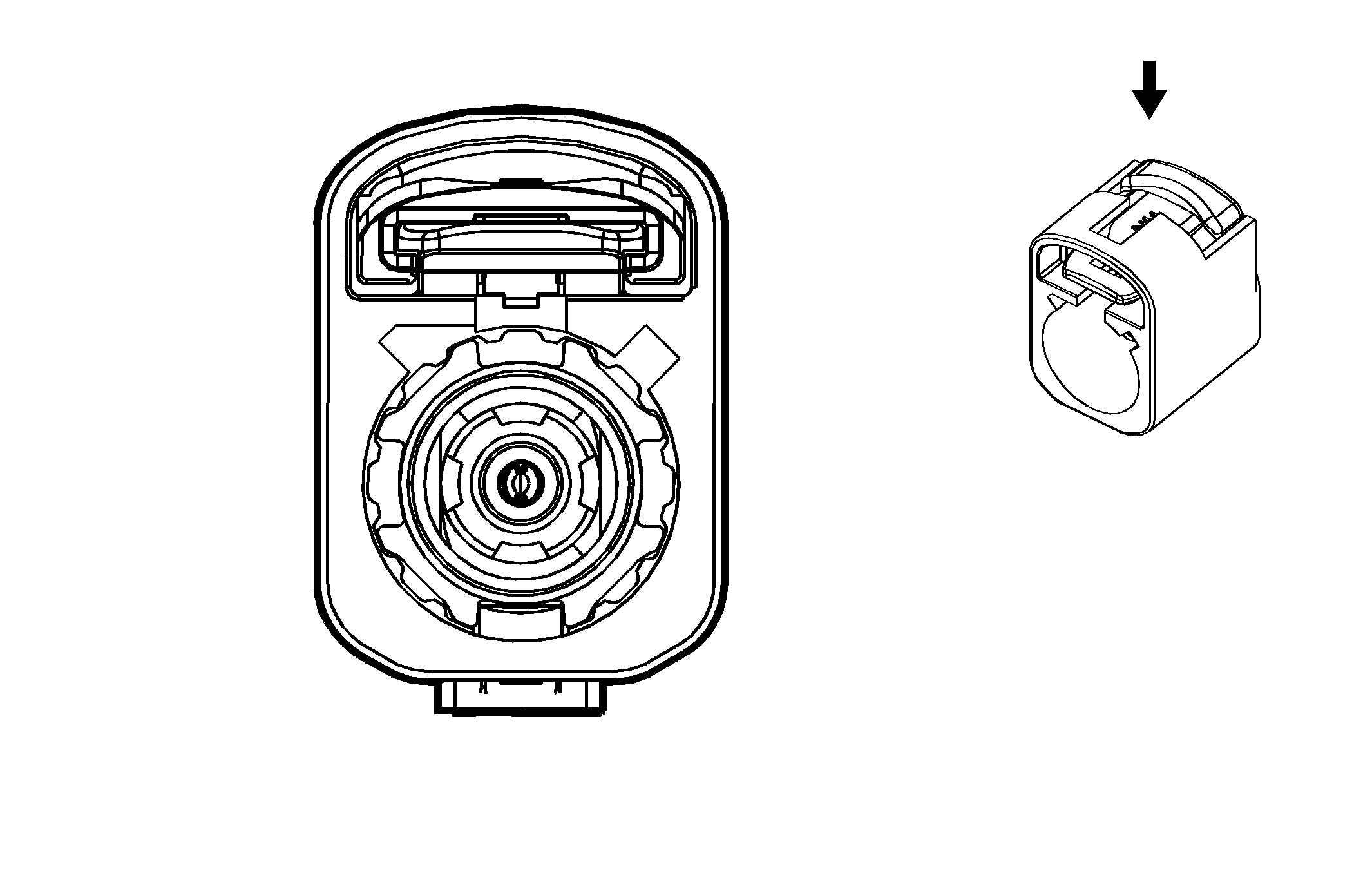

A11 Radio X3
|
|
Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 12784958
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M Coax Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
- |
COAX |
- |
Antenna RF Signal (2) |
I |
- |
