Power, Ground, Serial Data and Fuel Level

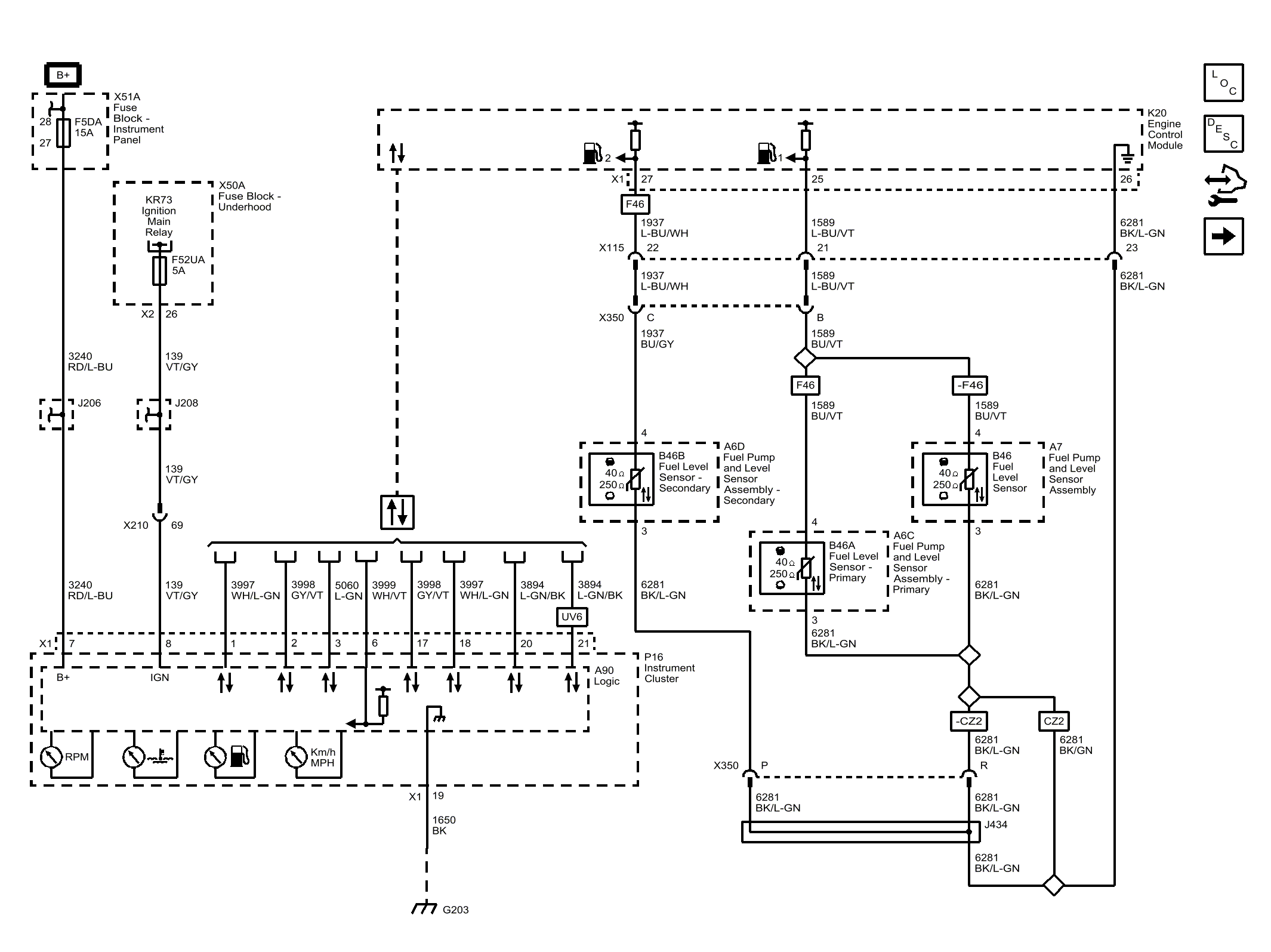

Fig 1: Power, Ground, Serial Data and Fuel Level

GM4454044

Courtesy of GENERAL MOTORS COMPANY
