Rear Side Door Check Link Cover Replacement

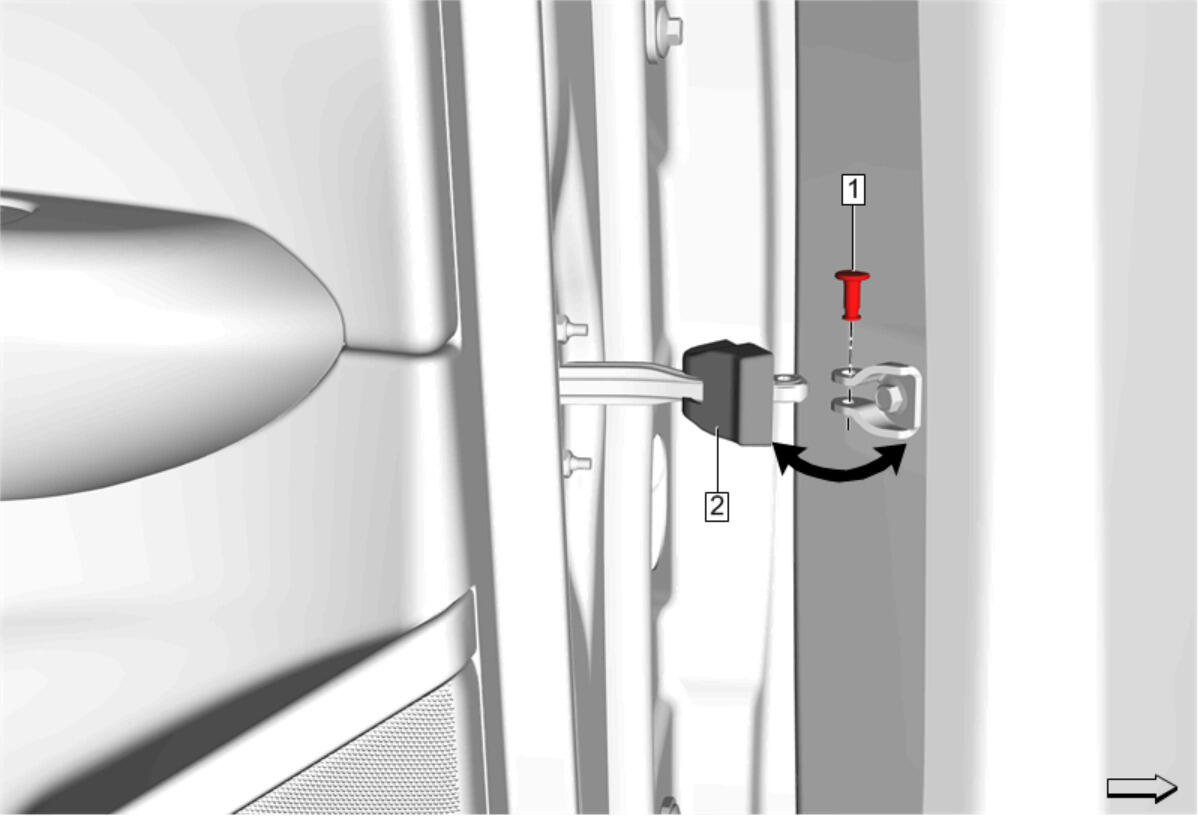

Fig 1: Rear Side Door Check Link Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Place the door in the full open position.
1	Rear Side Door Check Link Pin Pull the rear door check link cover rearward to gain access to the rear side door check link pin. Use the appropriate tool to remove the rear side door check link pin.
2	Rear Side Door Check Link Cover
