Hood Primary and Secondary Latch Replacement

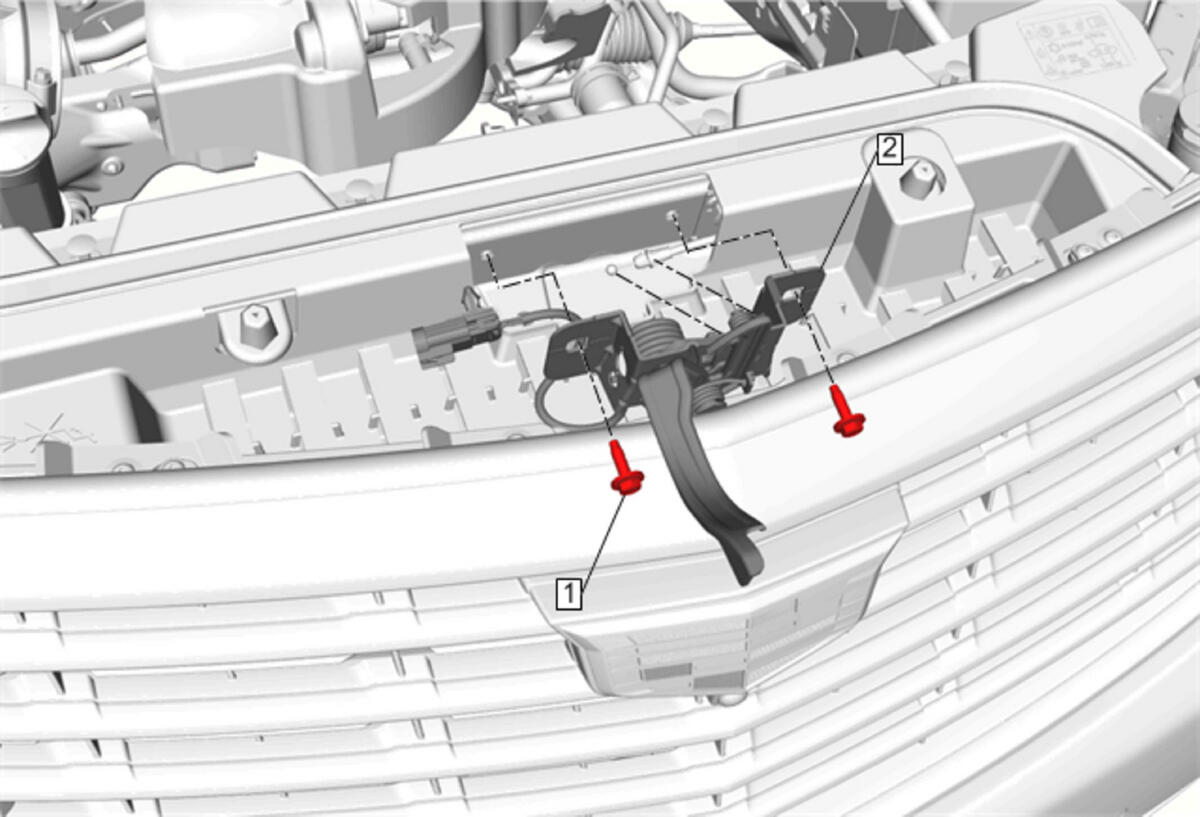

Fig 1: Hood Primary and Secondary Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Primary Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Hood Primary Latch Procedure Mark the position of the hood latch with a grease pencil. Disconnect the release cable from the hood primary latch. Disconnect the connector harness from the upper tie bar. Align the hood primary latch if necessary.

Callout

Component Name

Hood Primary Latch Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Hood Primary Latch

Procedure
