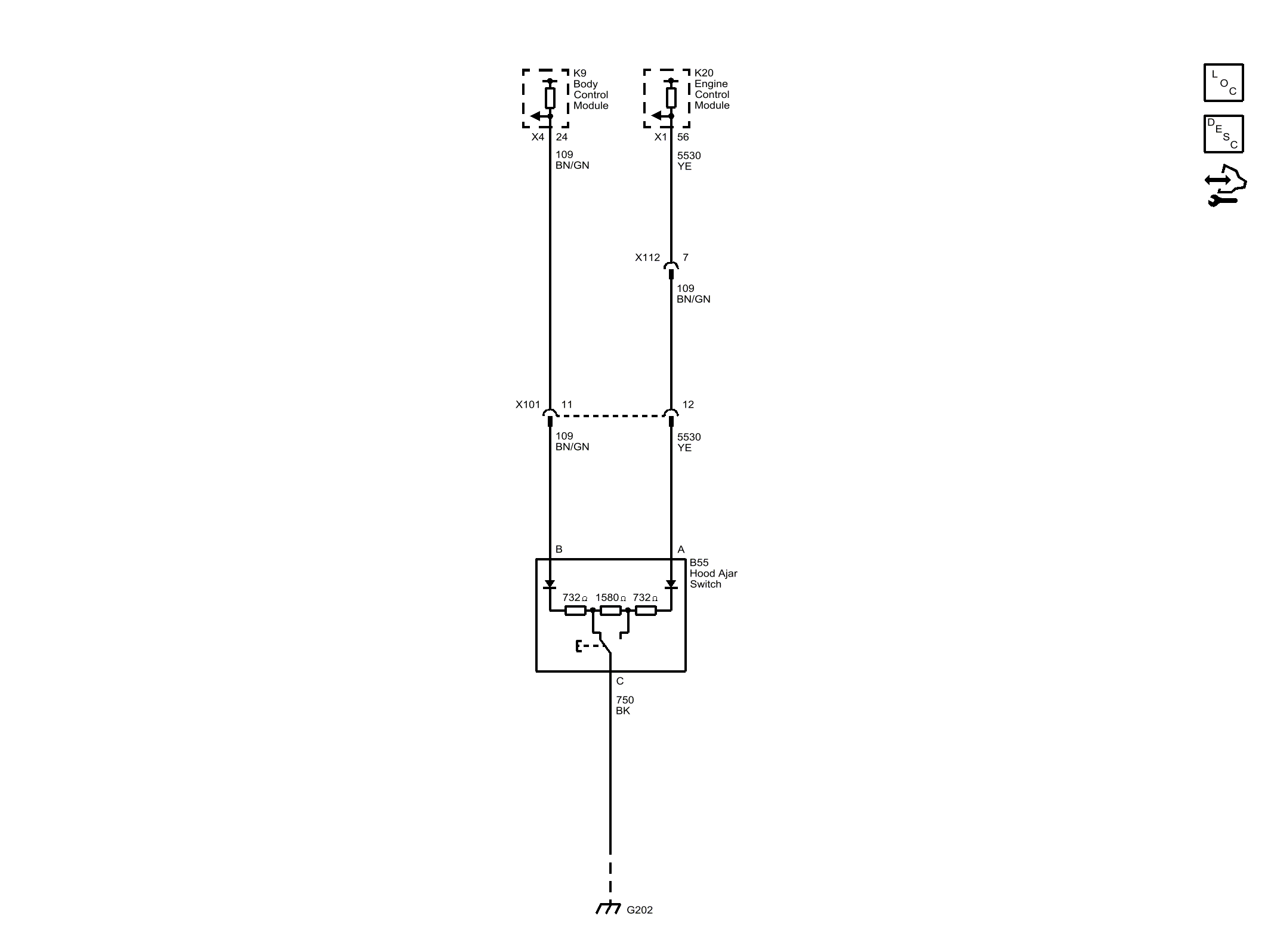

Home >> Cadillac >> 2017 >> XT5 Platinum >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Hood Latch Wiring Schematics >> Hood Ajar Switch
