Rear Side Door Wiring Harness Replacement

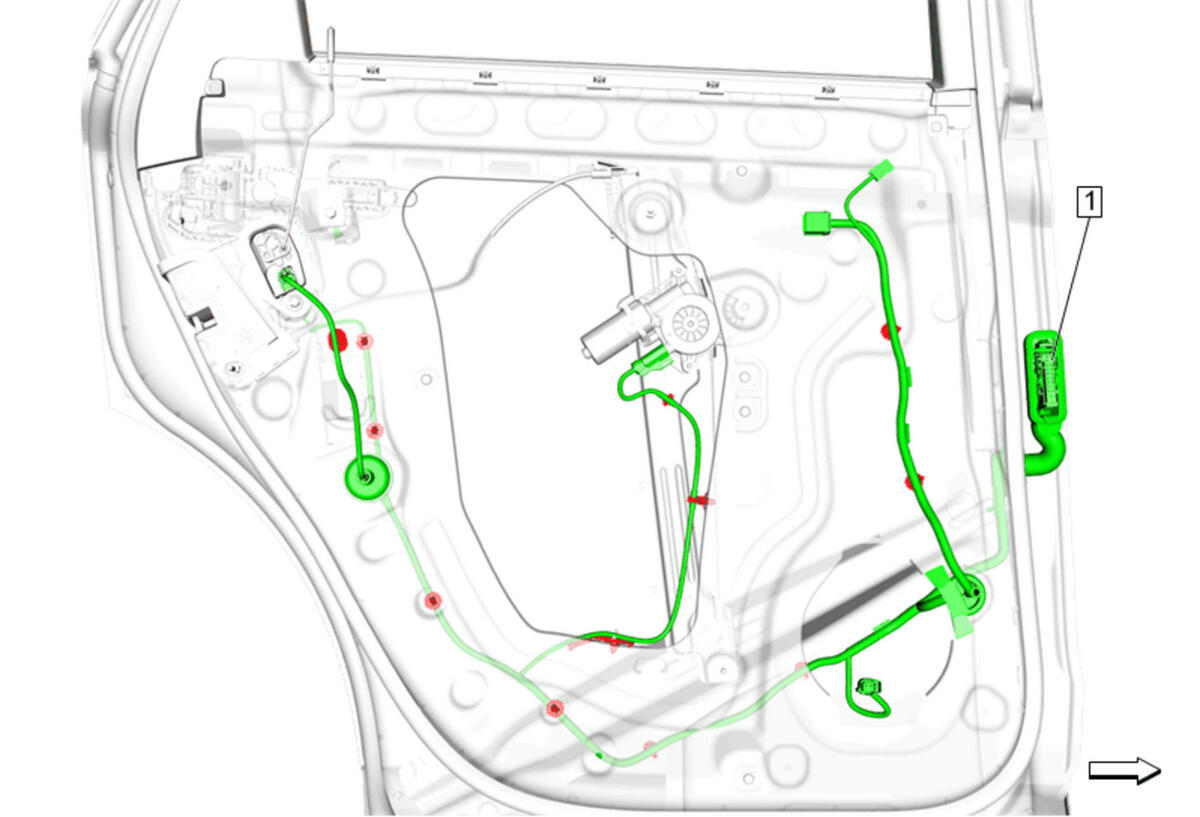

Fig 1: Rear Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Pull Handle Bracket Replacement Remove the rear side door water deflector.
1	Rear Side Door Wiring Harness Procedure Disconnect all electrical connectors. NOTE: Typical wiring harness shown, individual harness may be different due to option content.

Callout

Component Name

Preliminary Procedures

Rear Side Door Wiring Harness
Procedure
Disconnect all electrical connectors.

NOTE:

Typical wiring harness shown, individual harness may be different due to option content.
