Rear Side Door Window Garnish Molding Replacement

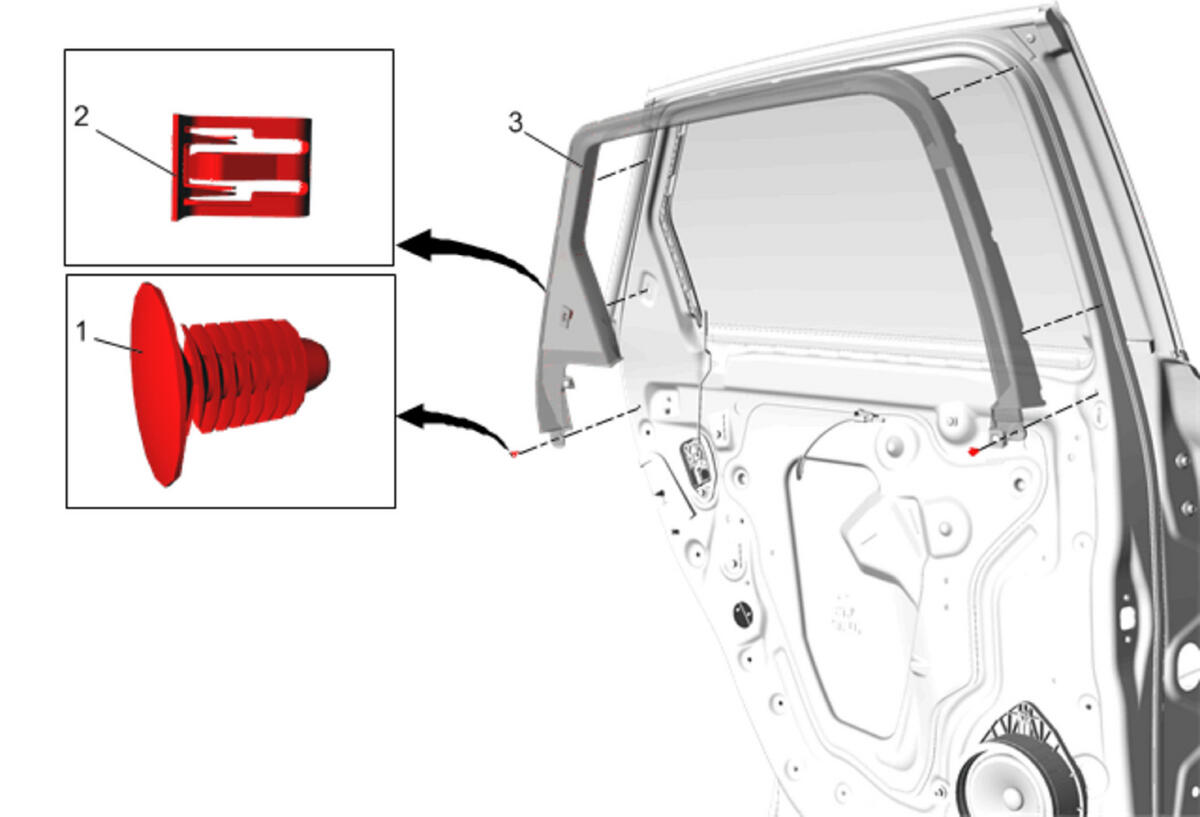

Fig 1: Rear Side Door Window Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement
1	Rear Side Door Window Garnish Molding Retainer (Qty: 2)
2	Rear Side Door Window Garnish Molding Clip
3	Rear Side Door Window Garnish Molding Procedure Use the appropriate tool to remove the push-in retainers. Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.
