Home >> Cadillac >> 2017 >> XT5 Platinum >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Repair Instructions >> Rear Side Door Weatherstrip Replacement - Door Side

Rear Side Door Weatherstrip Replacement - Door Side

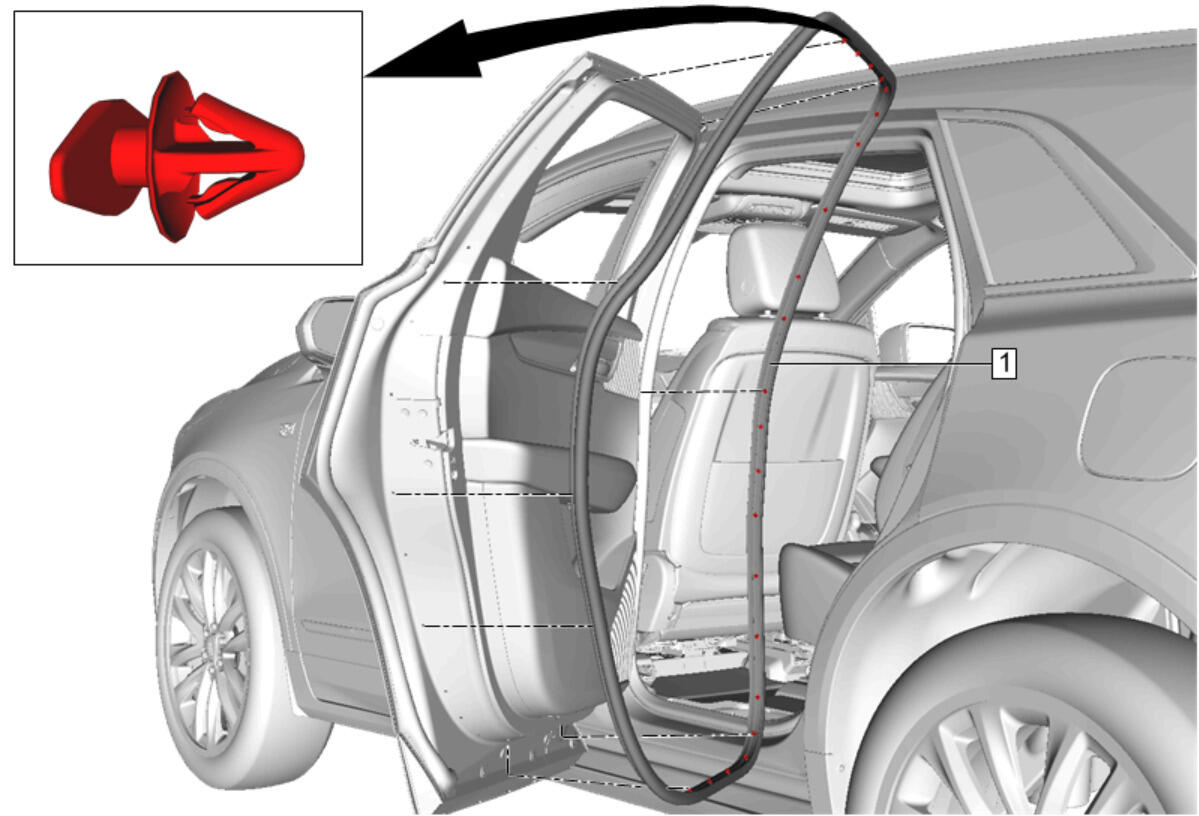

Fig 1: Rear Side Door Weatherstrip - Door Side
GM4281776Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Weatherstrip - Door Side

Procedure

  1. Using the appropriate tool, remove the weatherstrip retainers from around the door flange.
  2. Carefully pull the window weatherstrip from the door flange.
