Hood Insulator Replacement

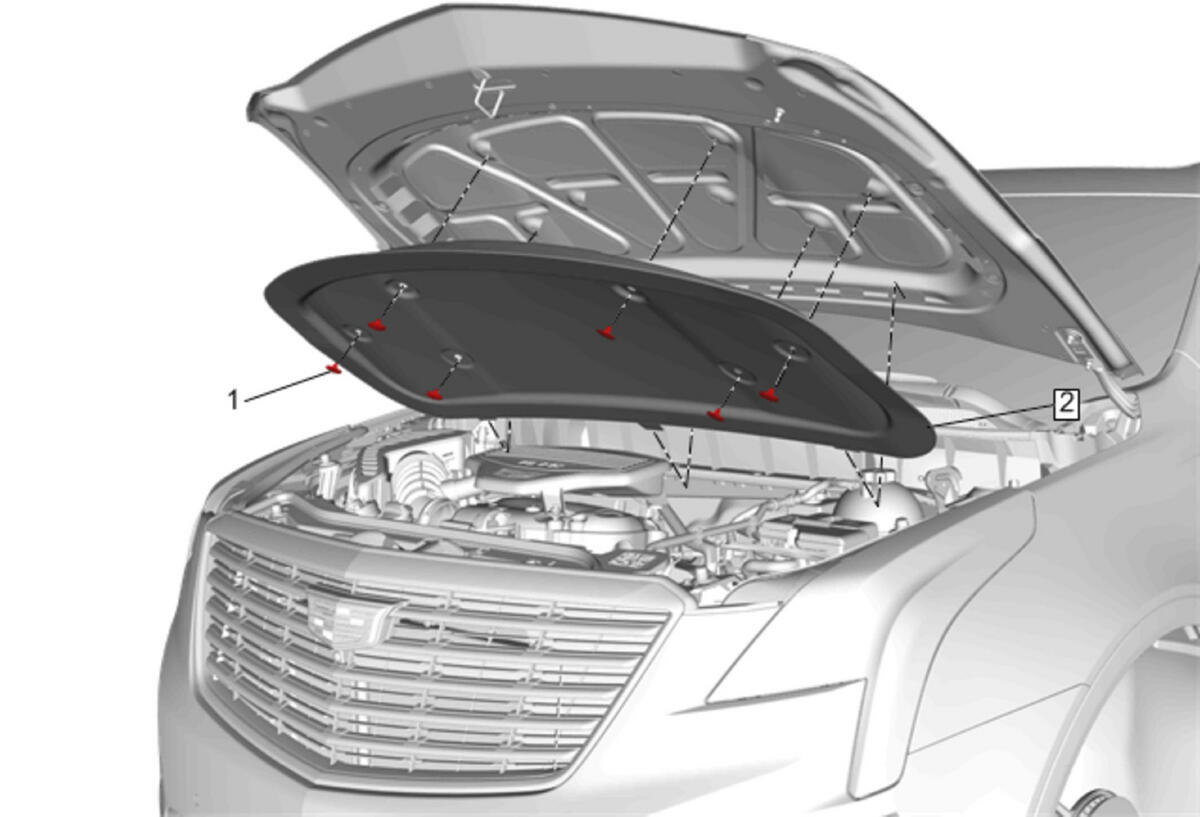

Fig 1: Hood Insulator
GM4293045Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Insulator Retainer (Qty: 6)
2 Hood Insulator
Procedure
Ensure the three lower integral tabs are secure to the hood.
