Front Side Door Window Garnish Molding Replacement

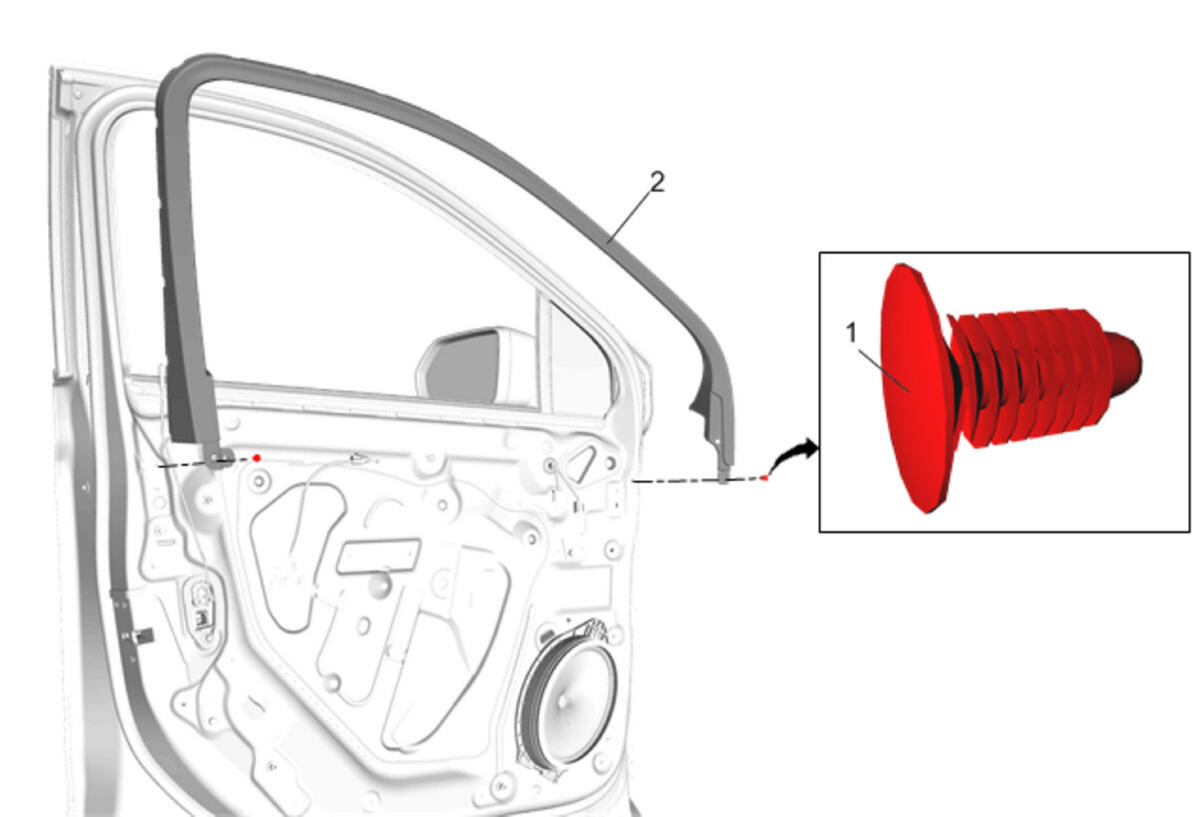

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Side Door Trim Replacement |
|
| 1 | Front Side Door Window Garnish Molding Retainer (Qty: 2) Procedure Use the appropriate tool to remove the push-in retainers. |
| 2 | Front Side Door Window Garnish Molding Procedure Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary. |
