Front Side Door Weatherstrip Replacement - Door Side

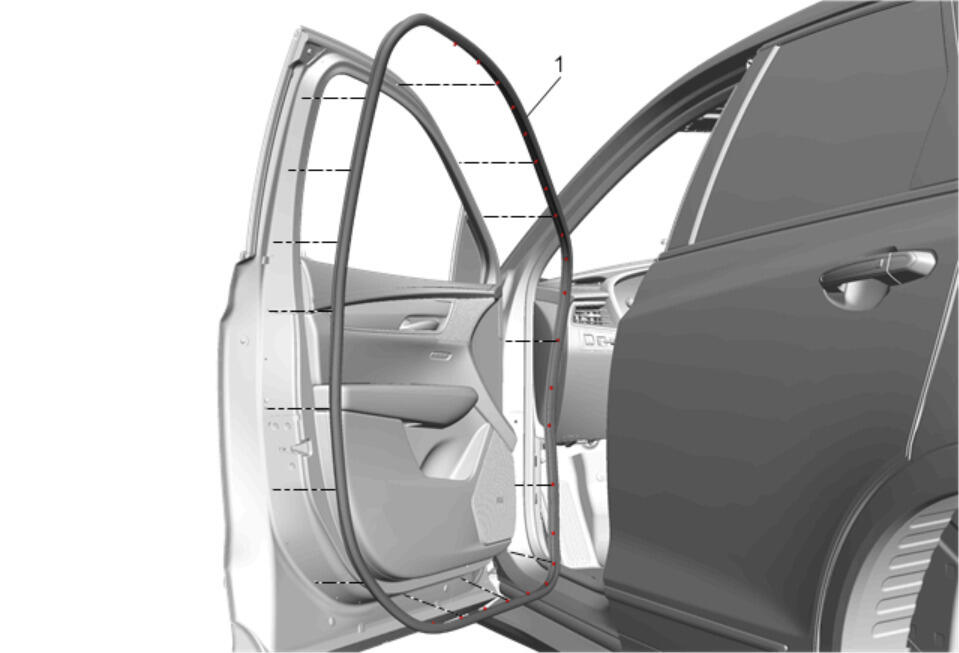

Fig 1: Front Side Door Weatherstrip - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Check Link Replacement
1	Front Side Door Weatherstrip - Door Side Procedure Using the appropriate tool, remove the weatherstrip retainers from around the door flange. Carefully pull the window weatherstrip from the door flange.

Callout

Component Name

Front Side Door Weatherstrip - Door Side

Procedure

Using the appropriate tool, remove the weatherstrip retainers from around the door flange.
Carefully pull the window weatherstrip from the door flange.
