Front Side Door Front Auxiliary Weatherstrip Replacement

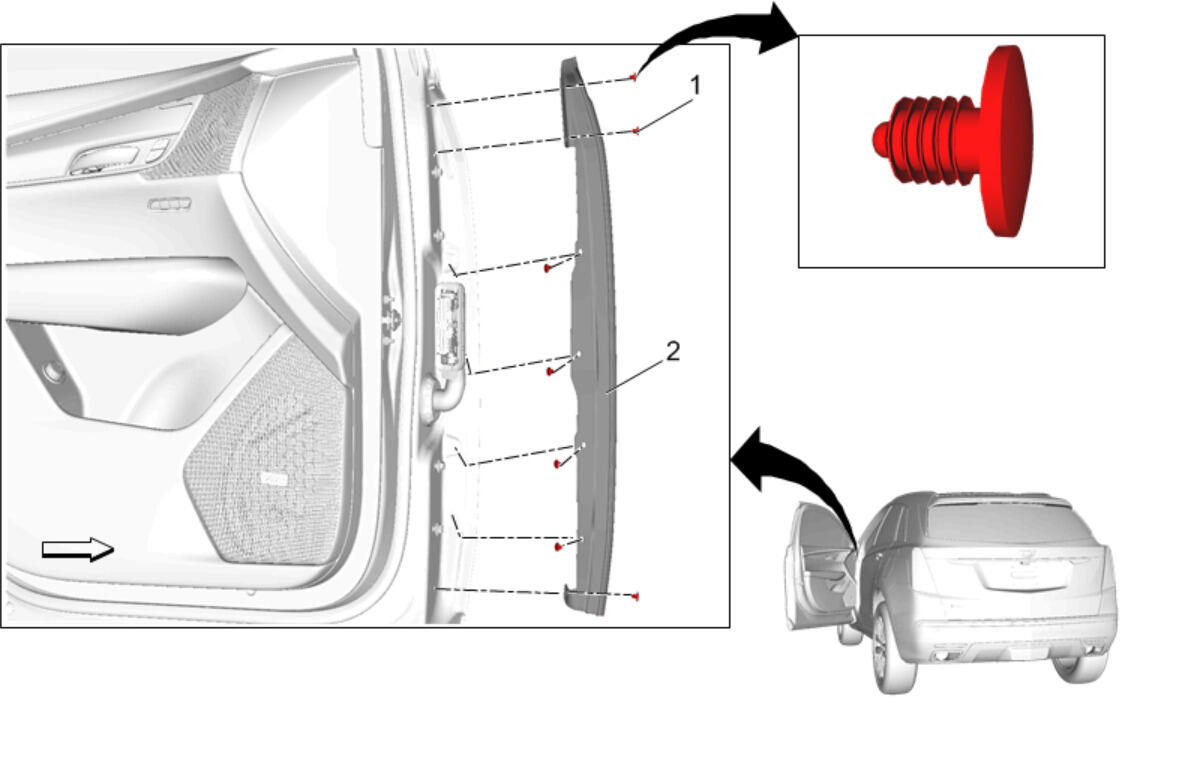

Fig 1: Front Side Door Front Auxiliary Weatherstrip
GM4281590Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Front Auxiliary Weatherstrip Retainer (Qty: 7)
Procedure
Using the appropriate tool, remove the front side door front auxiliary weatherstrip retainers.
2 Front Side Door Front Auxiliary Weatherstrip
