Air Temperature, Driver Information Center, and Compass

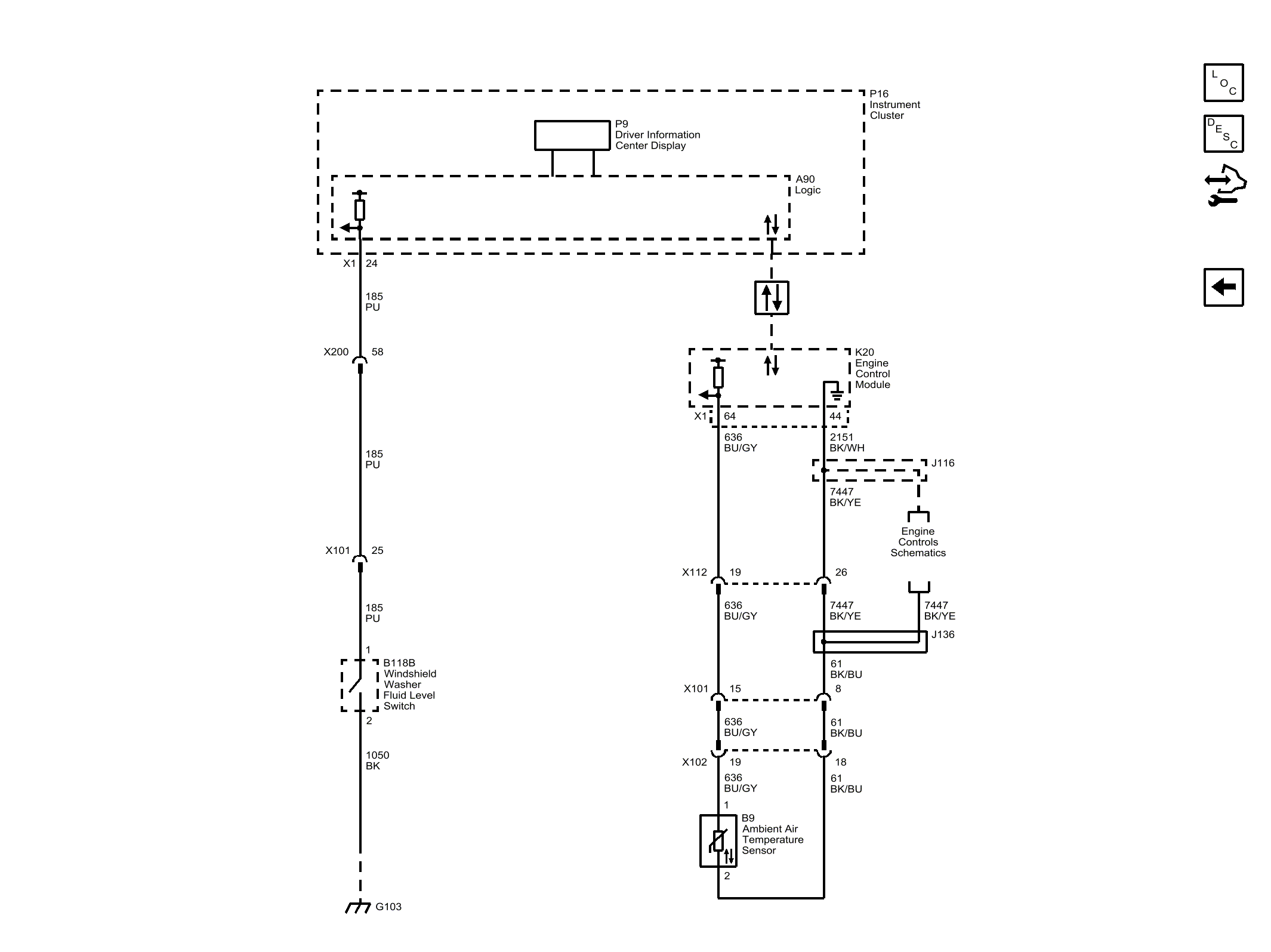

Fig 1: Air Temperature, Driver Information Center, and Compass

GM4289619

Courtesy of GENERAL MOTORS COMPANY
