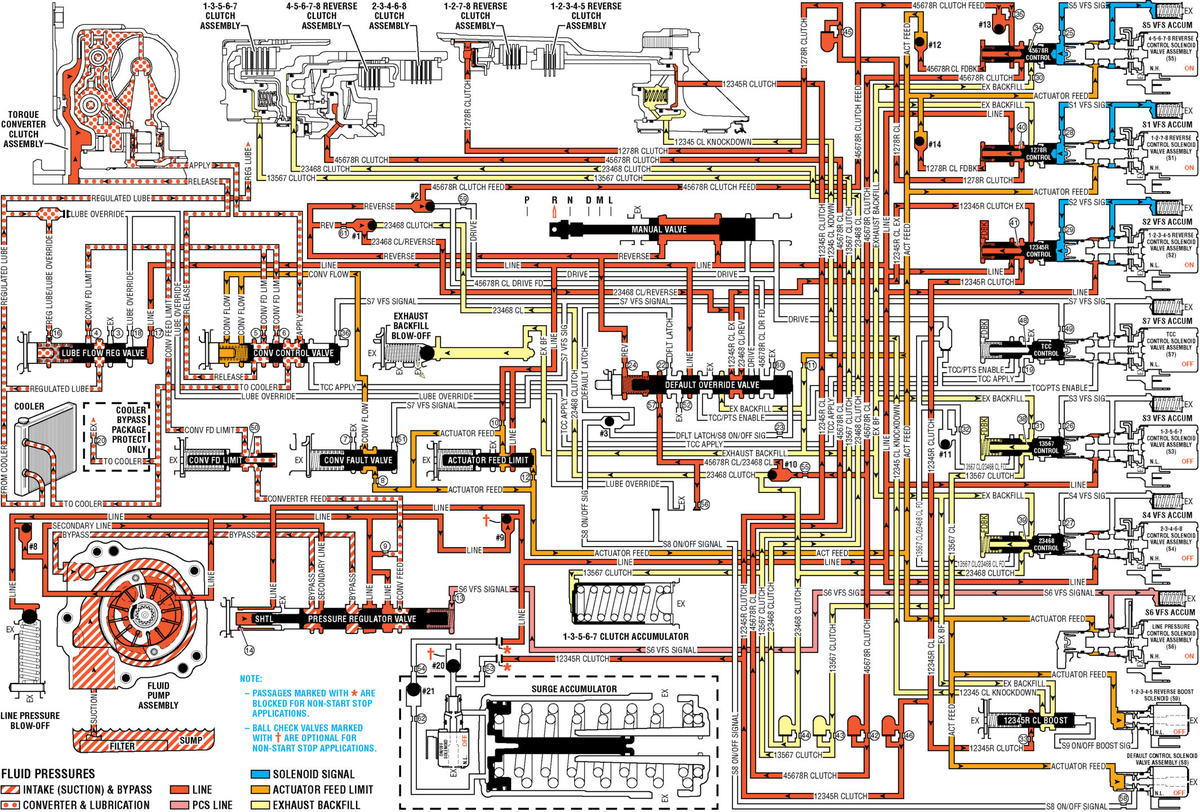

Home >> Cadillac >> 2017 >> Escalade ESV Base, RWD >> Repair and Diagnosis >> Transmission >> Hydraulic Diagrams >> Automatic Transmission - 8L90 (M5U) - Description And Operation >> Description and Operation >> Reverse >> Reverse - A/T System Hydraulic Diagram
