Neutral - Engine Running - A/T System Hydraulic Diagram

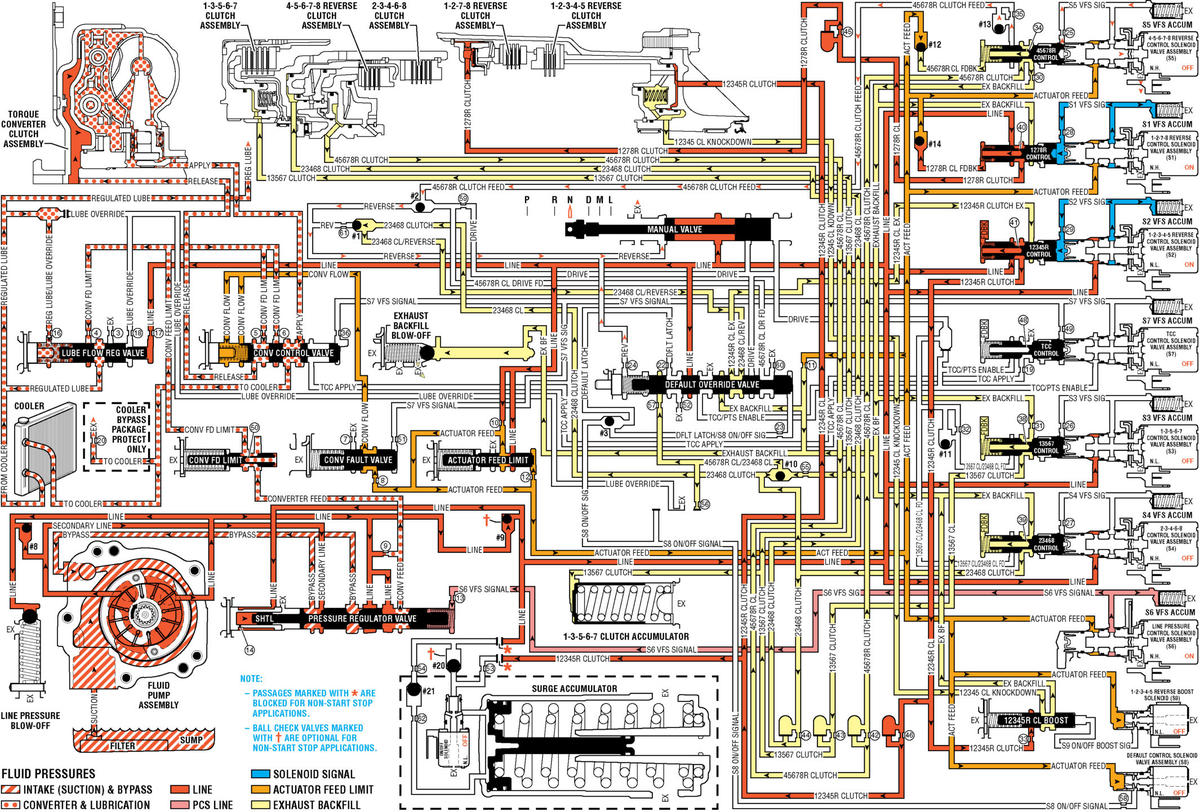

Fig 1: Neutral -- Engine Running Hydraulic Diagram

GM4311729

Courtesy of GENERAL MOTORS COMPANY
