Automatic Transmission - 8L90 (M5U) - Description And Operation
>>
Description and Operation
>>
Drive Range, First Gear
>>
Drive Range, First Gear - A/T System Hydraulic Diagram
Drive Range, First Gear - A/T System Hydraulic Diagram

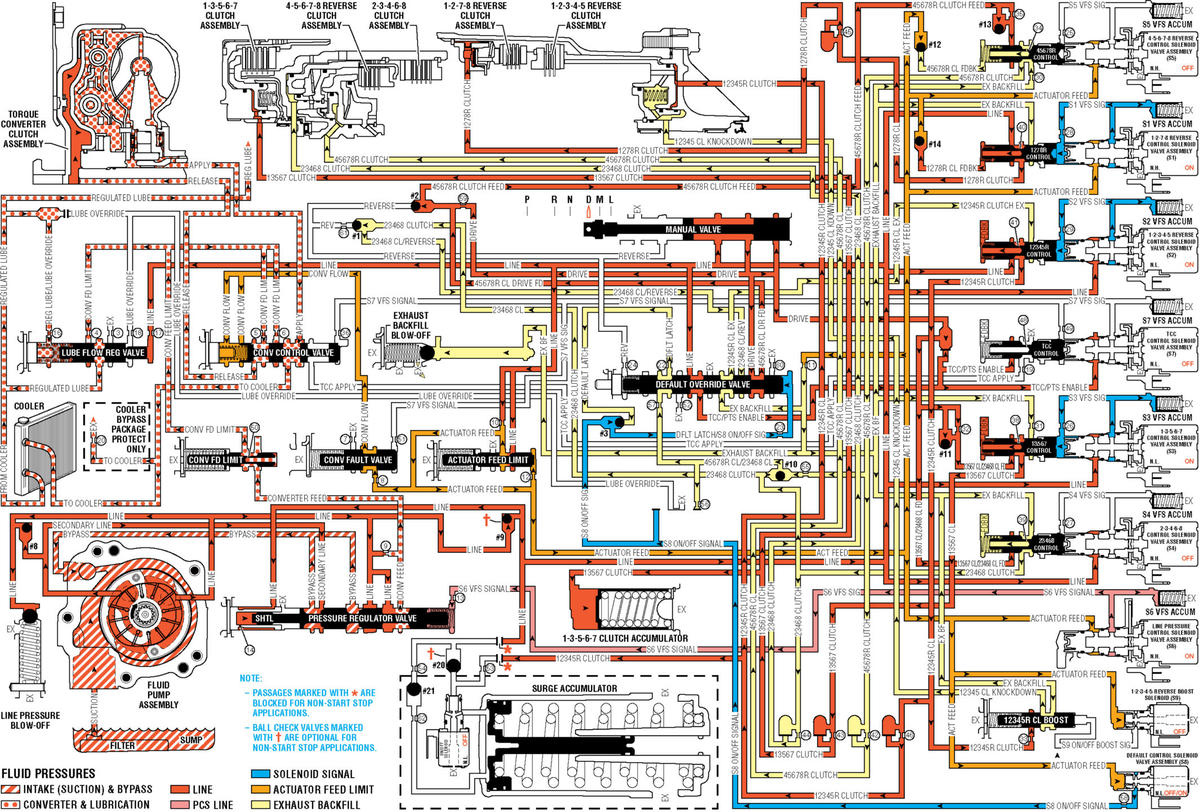

Fig 1: Drive Range, First Gear Hydraulic Diagram
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
