Magna Light Duty NQG/NQH/NP0 - Second Design
WARNING: This page is about a different variant/trim than selected.

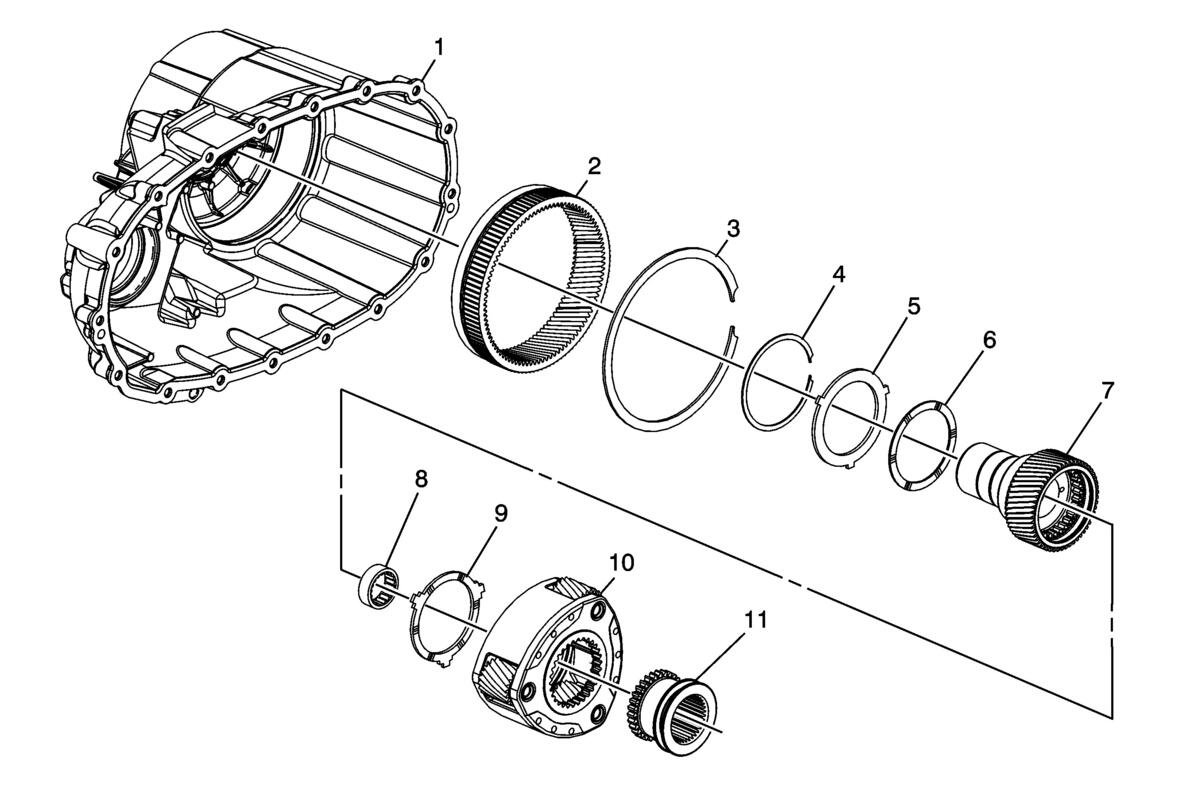

| Magna Light Duty NQG/NQH/NP0 - Second Design | |||
|---|---|---|---|
| Callout | Description | GM PN | Service Usage |
| 1 | Front Case Half Assembly - w/gear (2) and ring (3) | 19299077 | NQH |
| 1 | Front Case Half Assembly - w/gear (2) and ring (3) | 19299078 | NQG |
| 1 | Front Case Half Assembly - w/o gear (2) and ring (3) | 19299076 | NP0
NOTE:
The second design NP0 front case half assembly is interchangeable with first design |
| 2 | High/Low Internal Gear - Not serviceable - part of case assembly | NO/PN | NQG/NQH |
| 3 | High/Low Internal Gear Retaining Ring | 14037953 | NQG/NQH |
| 4 | High/Low Planetary Carrier Retaining Ring | 15547397 | NQG/NQH |
| 5 | High/Low Locking Plate - three tab design | 19300745 | NQG/NQH |
| 6 | Thrust Washer - Front - No tab design | 12470959 | NQG/NQH |
| 7 | Input Shaft Assembly - w/pilot bearing | 19299085 | NQG/NQH-w/M30 |
| 7 | Input Shaft Assembly - w/pilot bearing | 19299088 | NQH-w/M99 |
| NQG/NQH-w/MYC | |||
| 7 | Input Shaft Assembly - w/pilot bearing | 19255997 | NP0-w/MYC |
| 8 | Pilot Bearing | 19132983 | NQG/NQH/NP0 |
| 9 | Thrust Washer-Rear - Three tab design | 19300746 | NQG/NQH |
| 10 | High/Low Planetary Carrier Assembly - Three pinion design | 19299090 | NQG/NQH |
| 11 | High/Low Clutch | 19299092 | NQG/NQH - w/M30 |
| 11 | High/Low Clutch | 19299093 | NQG/NQH w/MYC and NQH w/M99 |
