Section 9 (Antilock Brake System)
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics
>>
Power, Ground, Serial Data and Traction Controls
Power, Ground, Serial Data and Traction Controls
WARNING:
This page is about a different car, the 2017 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

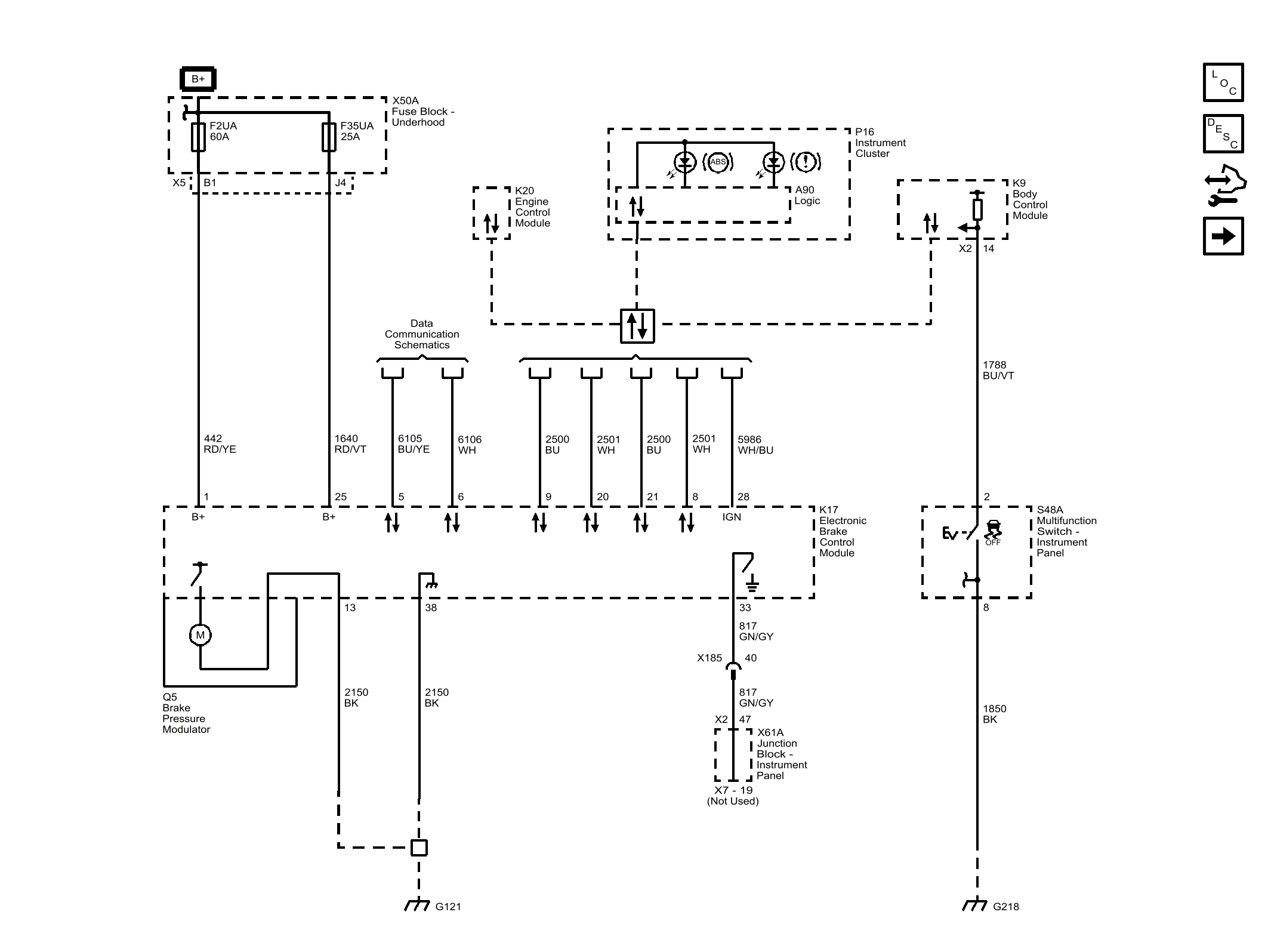

Fig 1: Power, Ground, Serial Data and Traction Controls
Courtesy of GENERAL MOTORS COMPANY
