Removal Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the automatic transmission flex plate. Refer to Automatic Transmission Flex Plate Replacement
- Install EN-51096 crankshaft rear seal remover onto GE-23907-1 slide hammer.
- Slide the small bend of EN-51096 crankshaft rear seal remover between the lip of the rear seal and crankshaft. Ensure that the small bend of EN-51096 crankshaft rear seal remover engages the rear side of the rear seal (1). While rotating EN-51096 crankshaft rear seal remover and GE-23907-1 slide hammer around the seal and use the slide hammer to remove the seal.

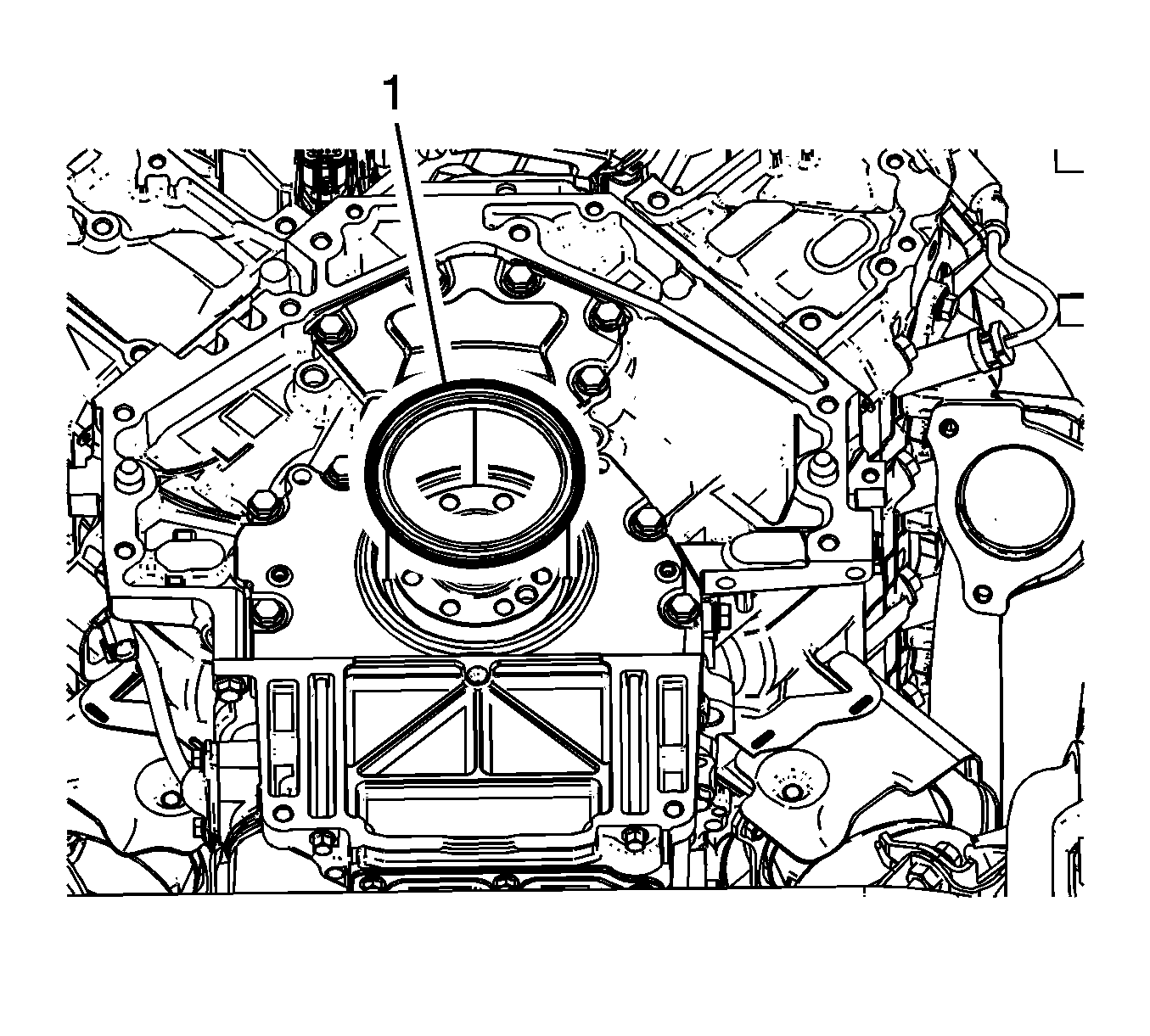

- Remove and DISCARD the crankshaft rear oil seal (1).
NOTE:
EN-51096 crankshaft rear seal remover has two ends. The end with the small bend will be used to remove the seal.
