Power, Ground and Shift Controls

WARNING: This page is about a different car, the 2017 GMC Yukon XL, 2017 GMC Yukon, 2017 Chevrolet Tahoe, and 2017 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

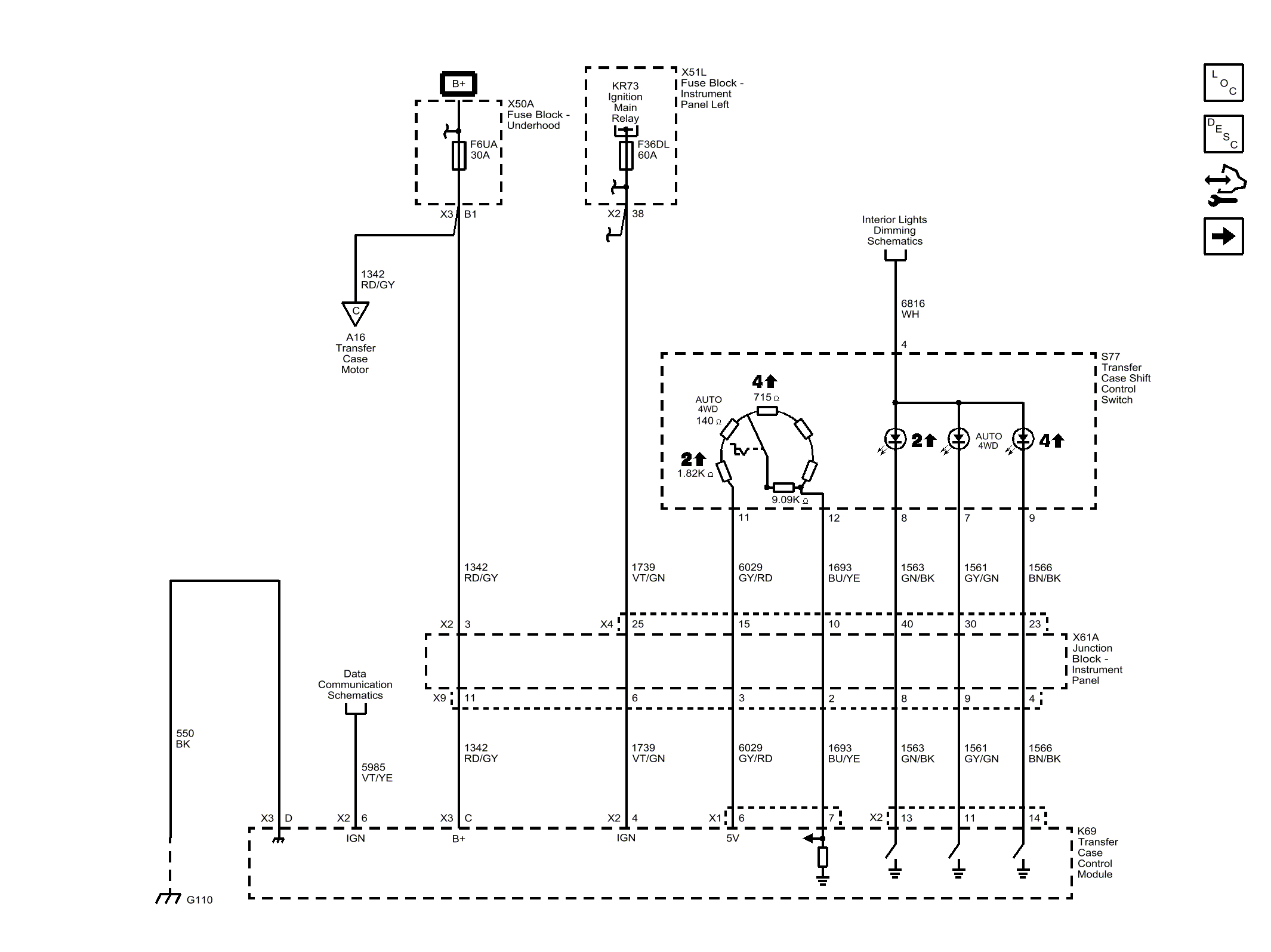

Fig 1: Power, Ground and Shift Controls
GM4500323Courtesy of GENERAL MOTORS COMPANY
