Propeller Shaft Oil Seal Sleeve Removal

WARNING: This page is about a different car, the 2017 GMC Yukon XL, 2017 GMC Yukon, 2017 Chevrolet Tahoe, and 2017 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

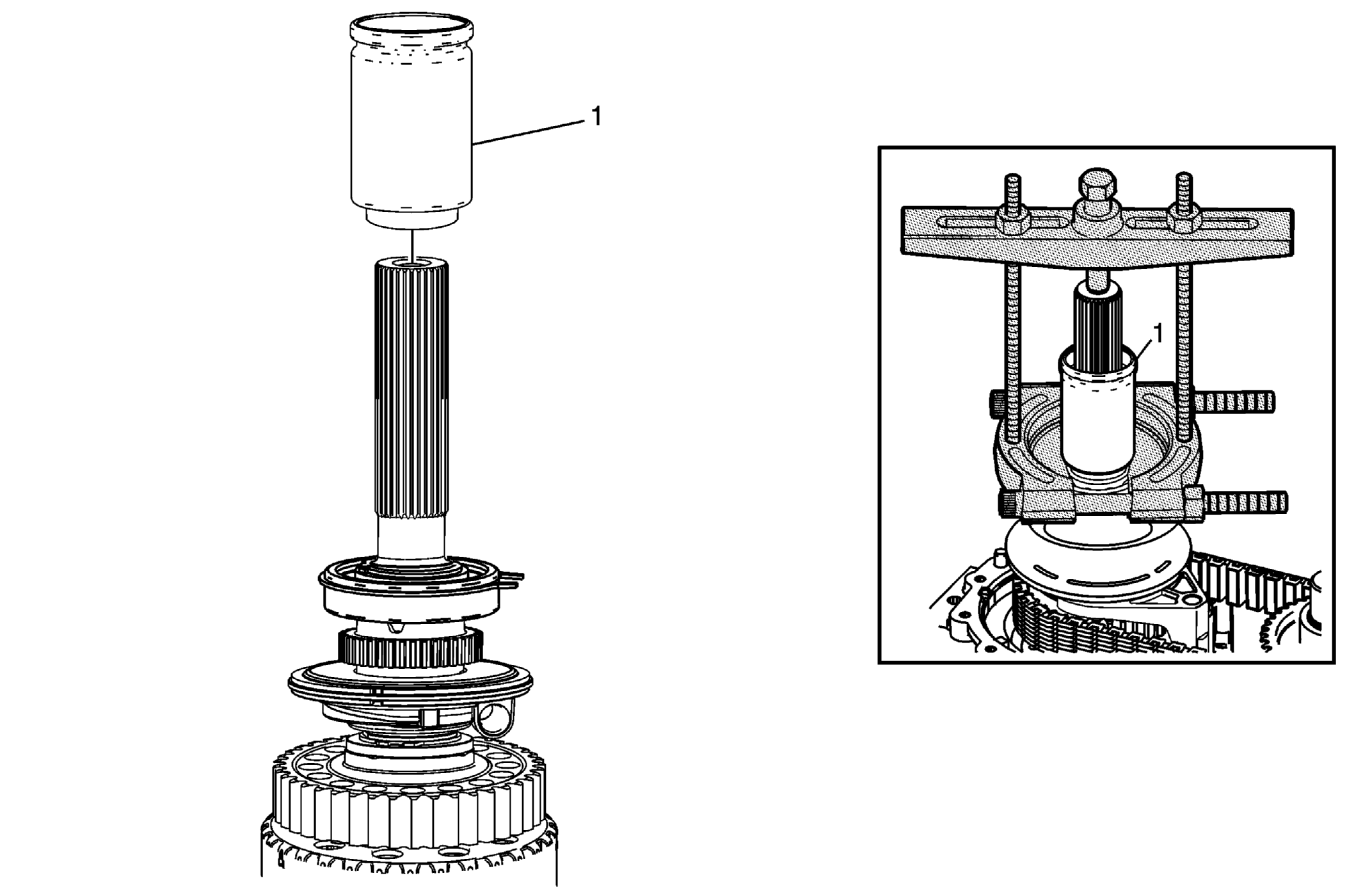

Fig 1: Propeller Shaft Oil Seal Sleeve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Propeller Shaft Oil Seal Sleeve NOTE: Discard the propeller shaft oil seal sleeve. The sleeve cannot be reused and must be replaced. Install NEW during assembly. Use the 3/8 x 24 in threaded rods for propeller shaft oil seal sleeve removal. Special Tools DT-22912-B Split Plate Bearing Puller DT-50802 Threaded Rod Kit GE-8433-1 Puller Bar For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Propeller Shaft Oil Seal Sleeve

NOTE:

Discard the propeller shaft oil seal sleeve. The sleeve cannot be reused and must be replaced. Install NEW during assembly.
Use the 3/8 x 24 in threaded rods for propeller shaft oil seal sleeve removal.

Special Tools

DT-22912-B Split Plate Bearing Puller
DT-50802 Threaded Rod Kit
GE-8433-1 Puller Bar

For equivalent regional tools, refer to Special Tools .
