Oil Pump Suction Pipe and Actuator Shaft Gear Removal

WARNING: This page is about a different car, the 2017 GMC Yukon XL, 2017 GMC Yukon, 2017 Chevrolet Tahoe, and 2017 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

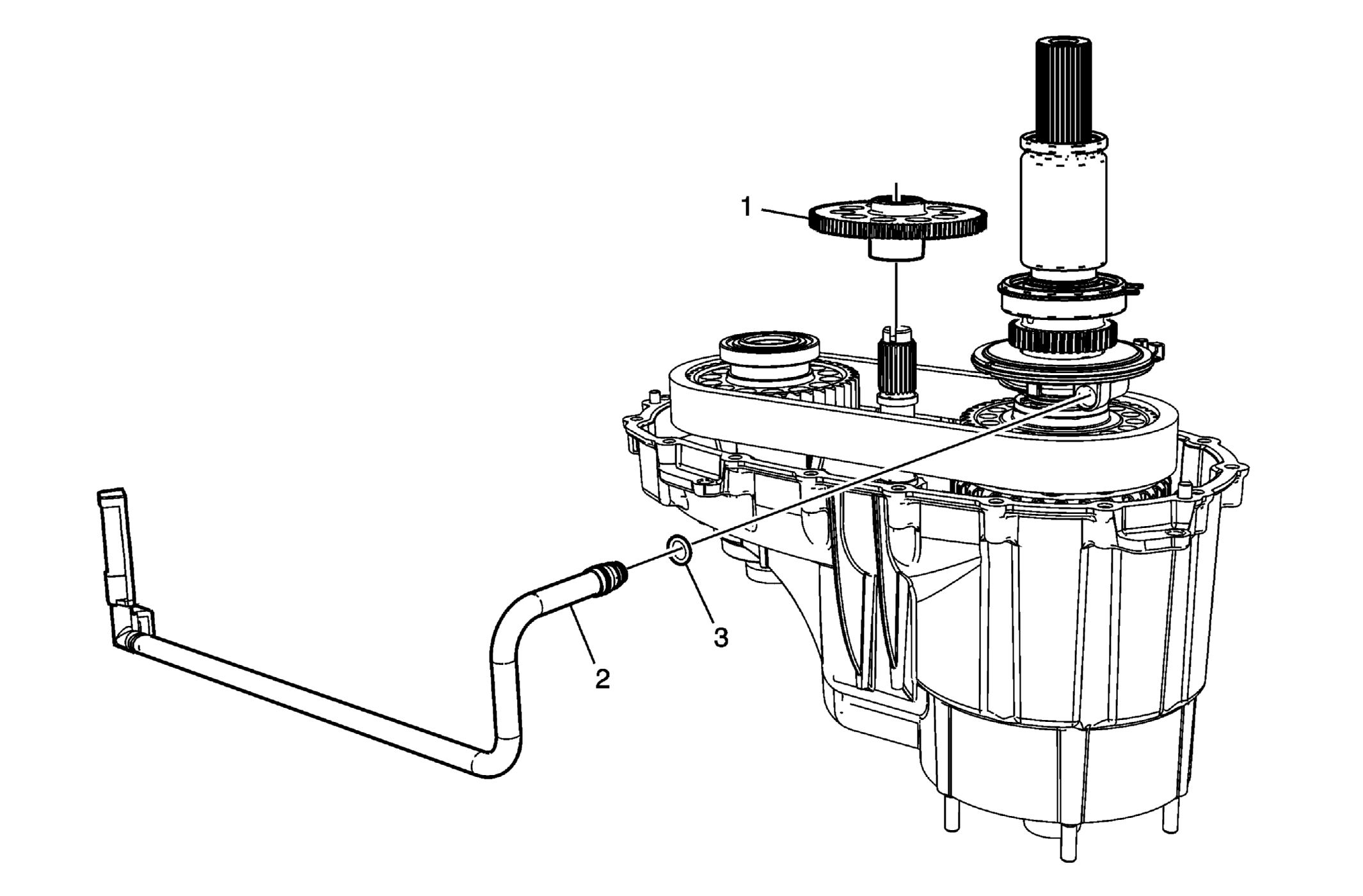

Fig 1: Oil Pump Suction Pipe and Actuator Shaft Gear
GM2914252Courtesy of GENERAL MOTORS COMPANY
Oil Pump Suction Pipe and Actuator Shaft Gear Removal

Callout Component Name
1 Transfer Case Actuator Shaft Gear
2 Transfer Case Oil Pump Suction Pipe
3 Transfer Case Oil Pump Suction Pipe Seal
