Actuator Shaft and Cam Assembly, Drive Chain, and Rear Output Shaft Assembly Removal

WARNING: This page is about a different car, the 2017 GMC Yukon XL, 2017 GMC Yukon, 2017 Chevrolet Tahoe, and 2017 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

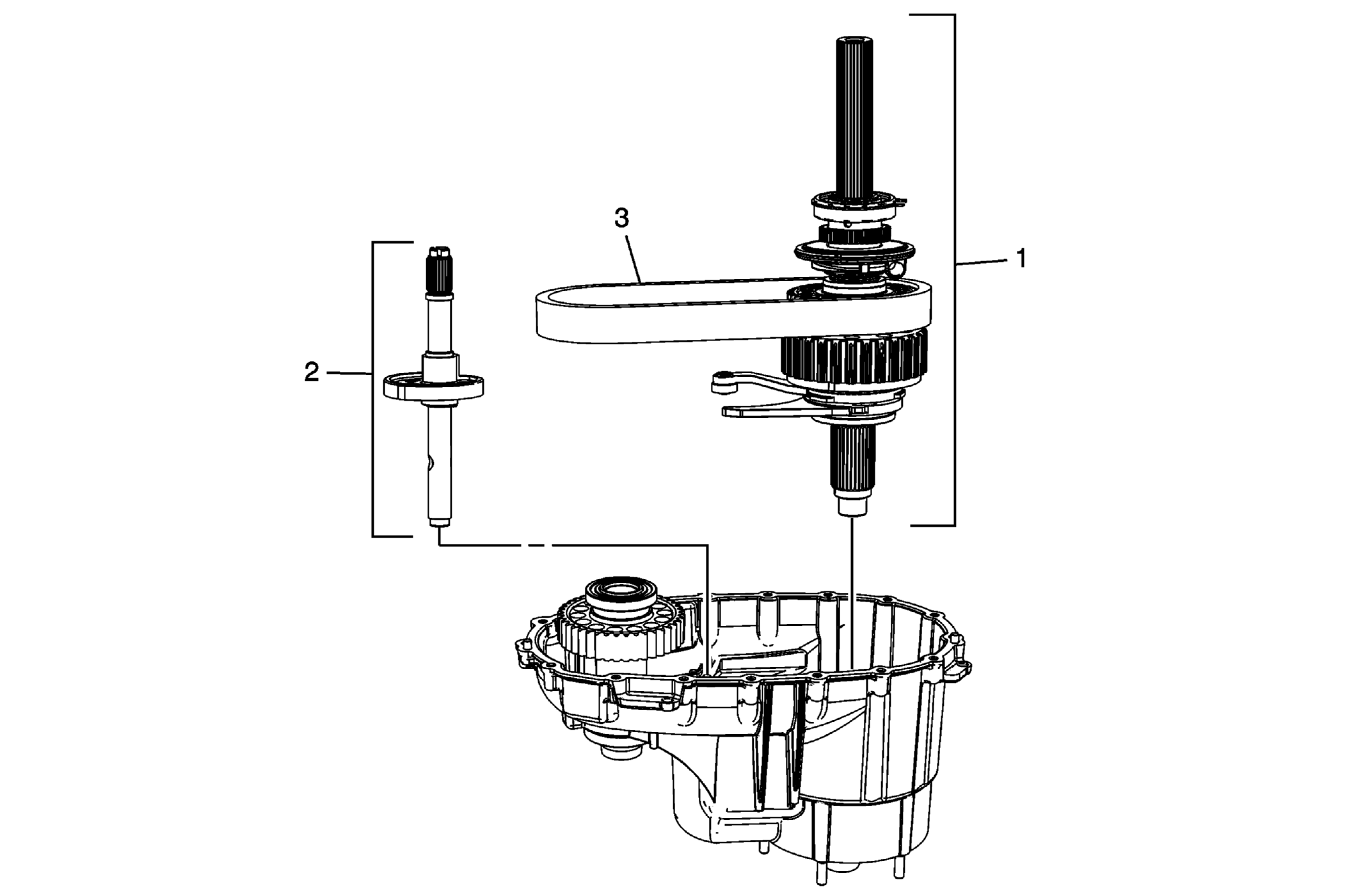

Fig 1: Actuator Shaft and Cam Assembly, Drive Chain, and Rear Output Shaft Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Rear Output Shaft Assembly NOTE: Mount the assembly into a soft-jaw vice or holding fixture for disassembly.
2	Transfer Case Actuator Shaft and Cam Assembly
3	Transfer Case Front Output Shaft Drive Chain Assembly
