Propeller Shaft Oil Seal Sleeve Installation

WARNING: This page is about a different car, the 2017 GMC Yukon XL, 2017 GMC Yukon, 2017 Chevrolet Tahoe, and 2017 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

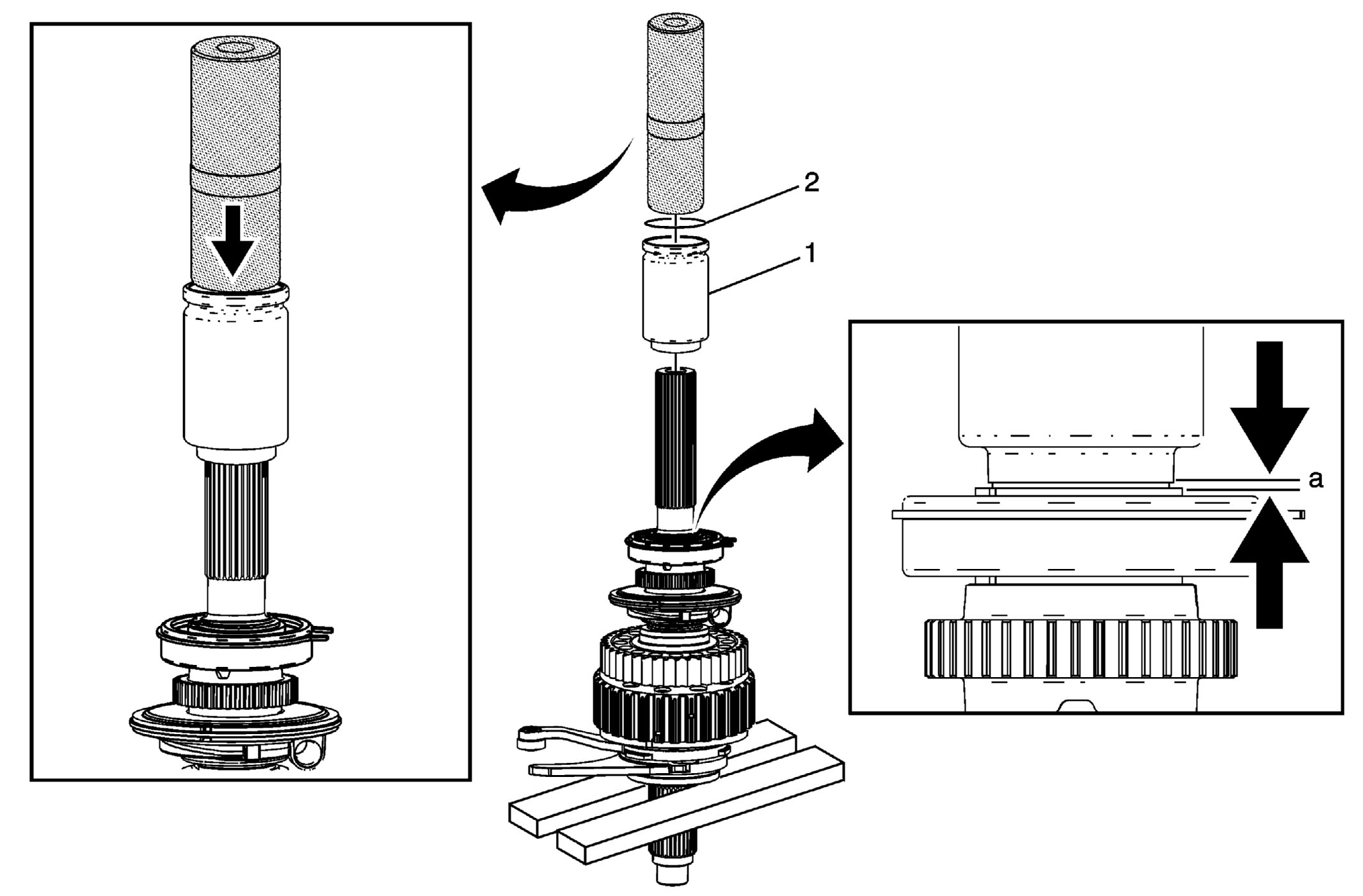

Fig 1: Propeller Shaft Oil Seal Sleeve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Propeller Shaft Oil Seal Sleeve NOTE: Press the sleeve onto the shaft until the tool contacts the end of the rear output shaft. Install a NEW sleeve during assembly. The sleeve is to be installed without the seal. A properly installed sleeve should not contact the rear bearing snap ring. Procedure Using DT-51083 sleeve installer and a press install the propeller shaft oil seal sleeve. Inspect for a 3.7 - 4.3 mm (0.14 - 0.17 in) gap (a) between the sleeve and the snap ring. Special Tools DT-51083 Sleeve Installer For equivalent regional tools, refer to Special Tools .
2	Propeller Shaft Sleeve Seal

Callout

Component Name

Propeller Shaft Oil Seal Sleeve

NOTE:

Press the sleeve onto the shaft until the tool contacts the end of the rear output shaft. Install a NEW sleeve during assembly.
The sleeve is to be installed without the seal.
A properly installed sleeve should not contact the rear bearing snap ring.

Procedure

Using DT-51083 sleeve installer and a press install the propeller shaft oil seal sleeve.
Inspect for a 3.7 - 4.3 mm (0.14 - 0.17 in) gap (a) between the sleeve and the snap ring.

Special Tools
DT-51083 Sleeve Installer
For equivalent regional tools, refer to Special Tools .

Propeller Shaft Sleeve Seal
