Actuator Shaft and Cam Assembly, and Rear Output Shaft Assembly Installation

WARNING: This page is about a different car, the 2017 GMC Yukon XL, 2017 GMC Yukon, 2017 Chevrolet Tahoe, and 2017 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

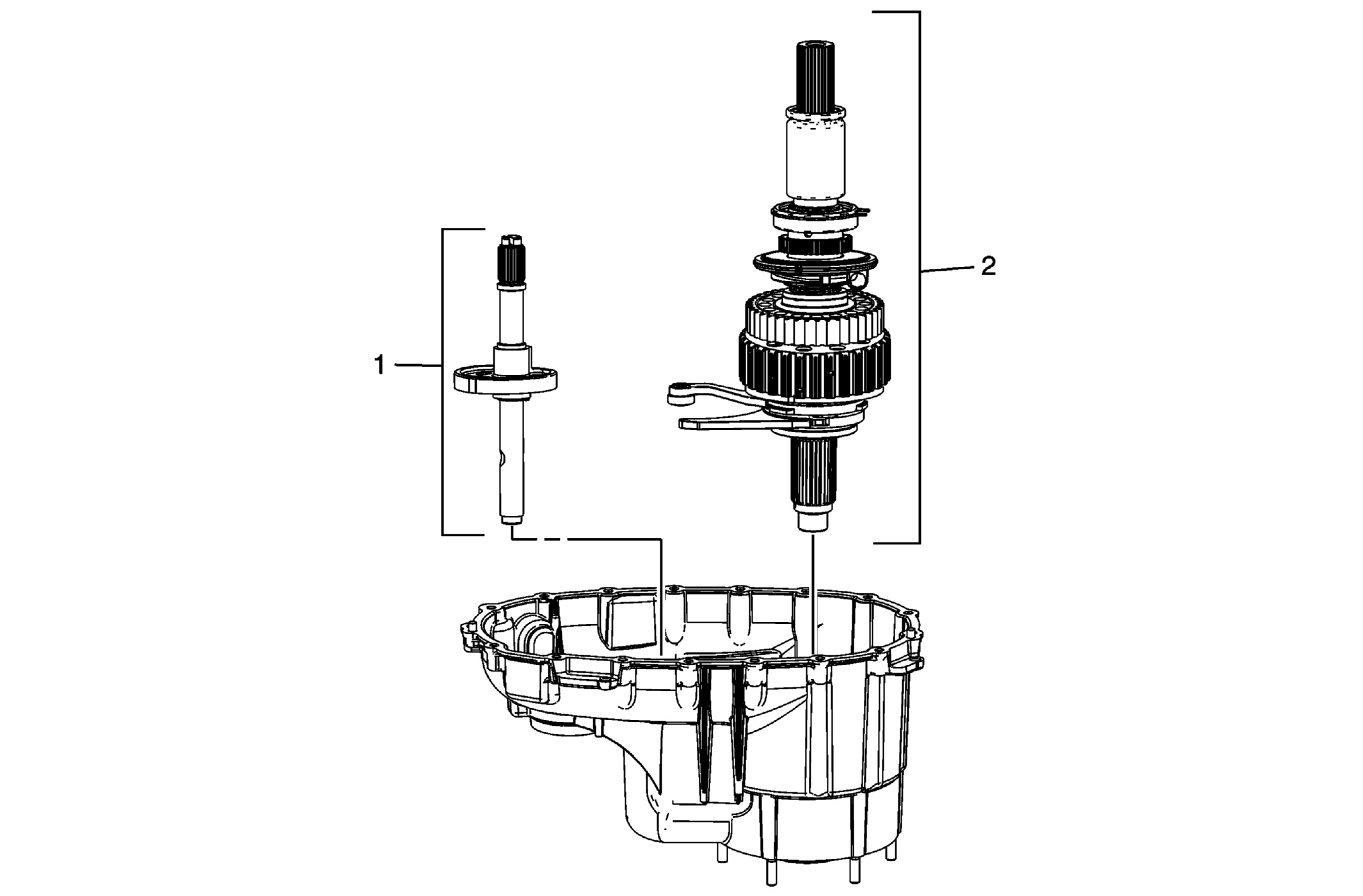

Fig 1: Actuator Shaft and Cam Assembly, and Rear Output Shaft Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Load all 3 components simultaneously.
1	Transfer Case Actuator Shaft and Cam Assembly
2	Transfer Case Rear Output Shaft Assembly
