MOST Bus Communications Enable

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 GMC Yukon XL, 2016 GMC Yukon, 2016 Chevrolet Tahoe, 2016 Chevrolet Suburban 3500 HD, and 2016 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

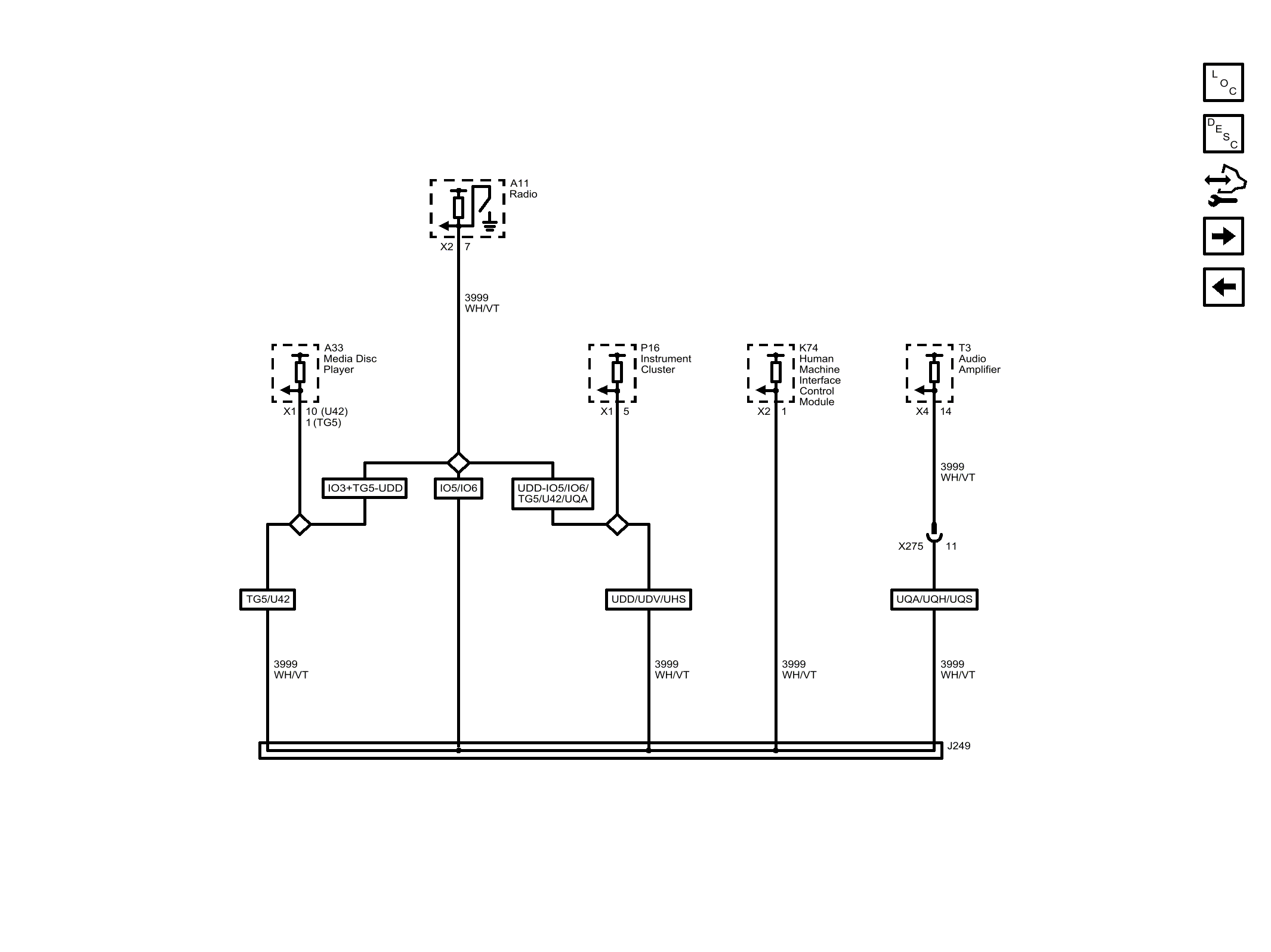

Fig 1: MOST Bus Communications Enable
GM4073245Courtesy of GENERAL MOTORS COMPANY
