Data Link Power and Ground, and Low Speed GMLAN (2 of 2)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 GMC Yukon XL, 2016 GMC Yukon, 2016 Chevrolet Tahoe, 2016 Chevrolet Suburban 3500 HD, and 2016 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

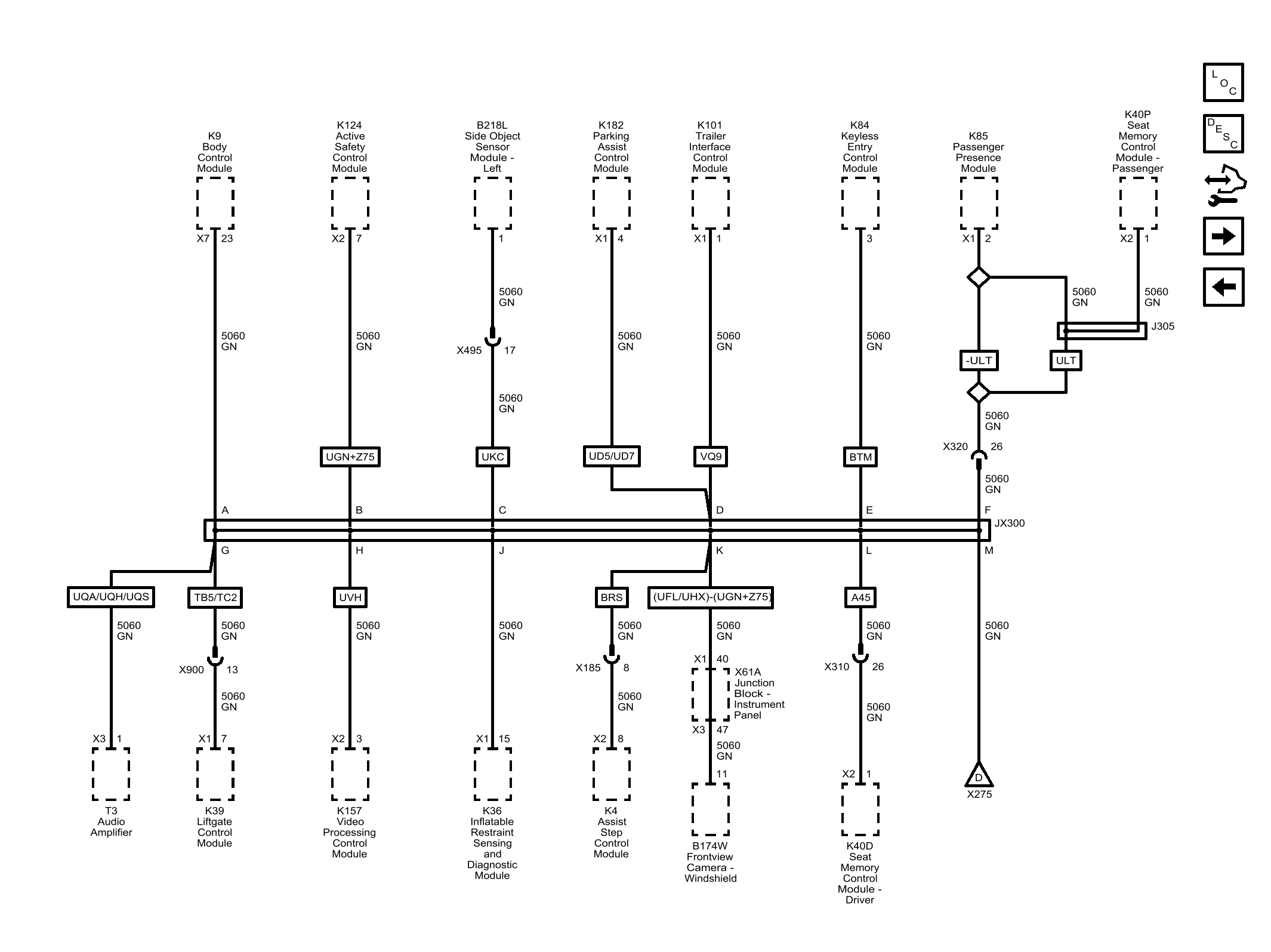

Fig 1: Data Link Power and Ground, and Low Speed GMLAN (2 of 2)
GM4073256Courtesy of GENERAL MOTORS COMPANY
