Subsystem References (2 of 4)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 GMC Yukon XL, 2016 GMC Yukon, 2016 Chevrolet Tahoe, 2016 Chevrolet Suburban 3500 HD, and 2016 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

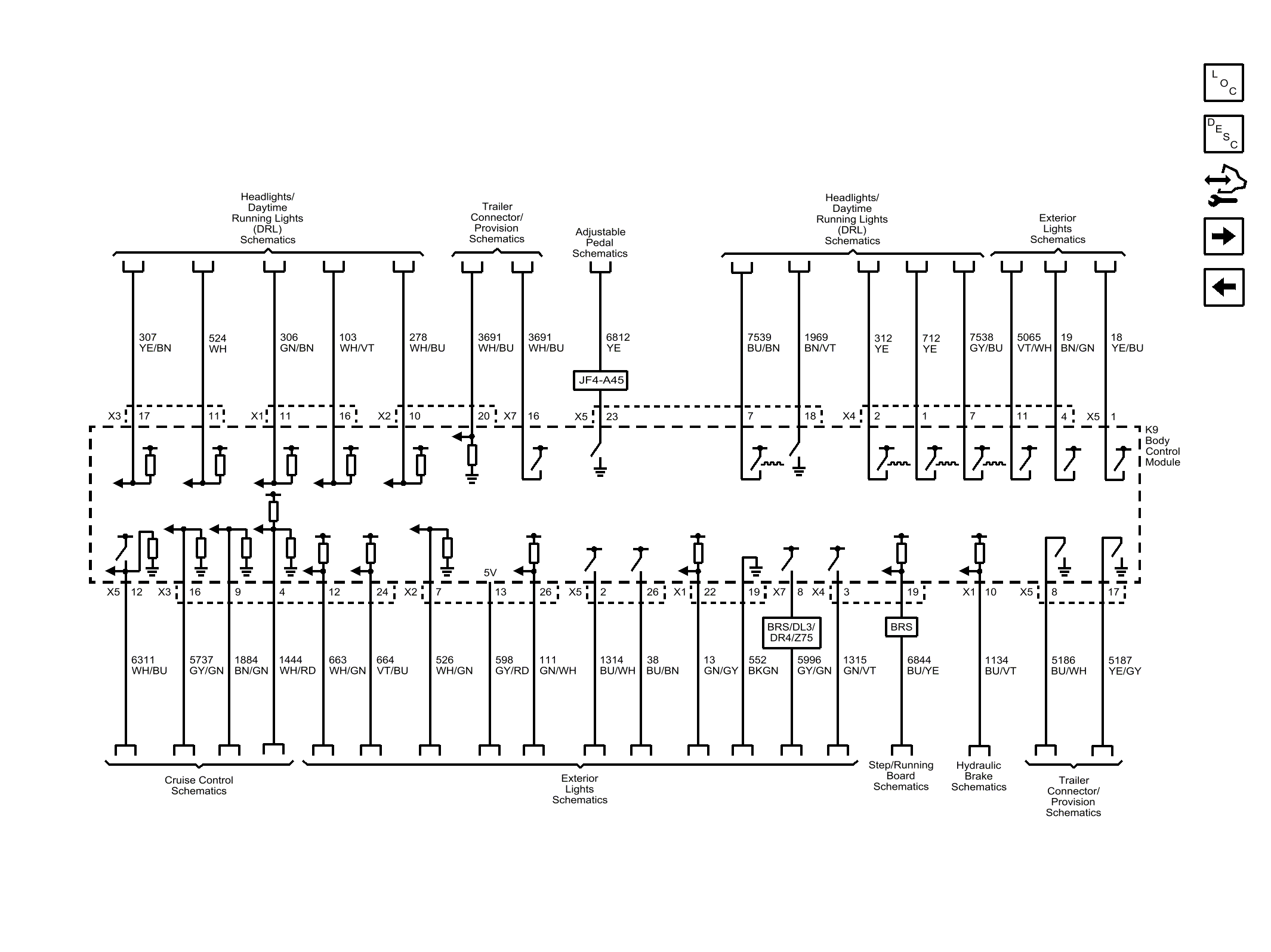

Fig 1: Subsystem References (2 of 4)
GM4073199Courtesy of GENERAL MOTORS COMPANY
