Drive Belt Replacement - Accessory

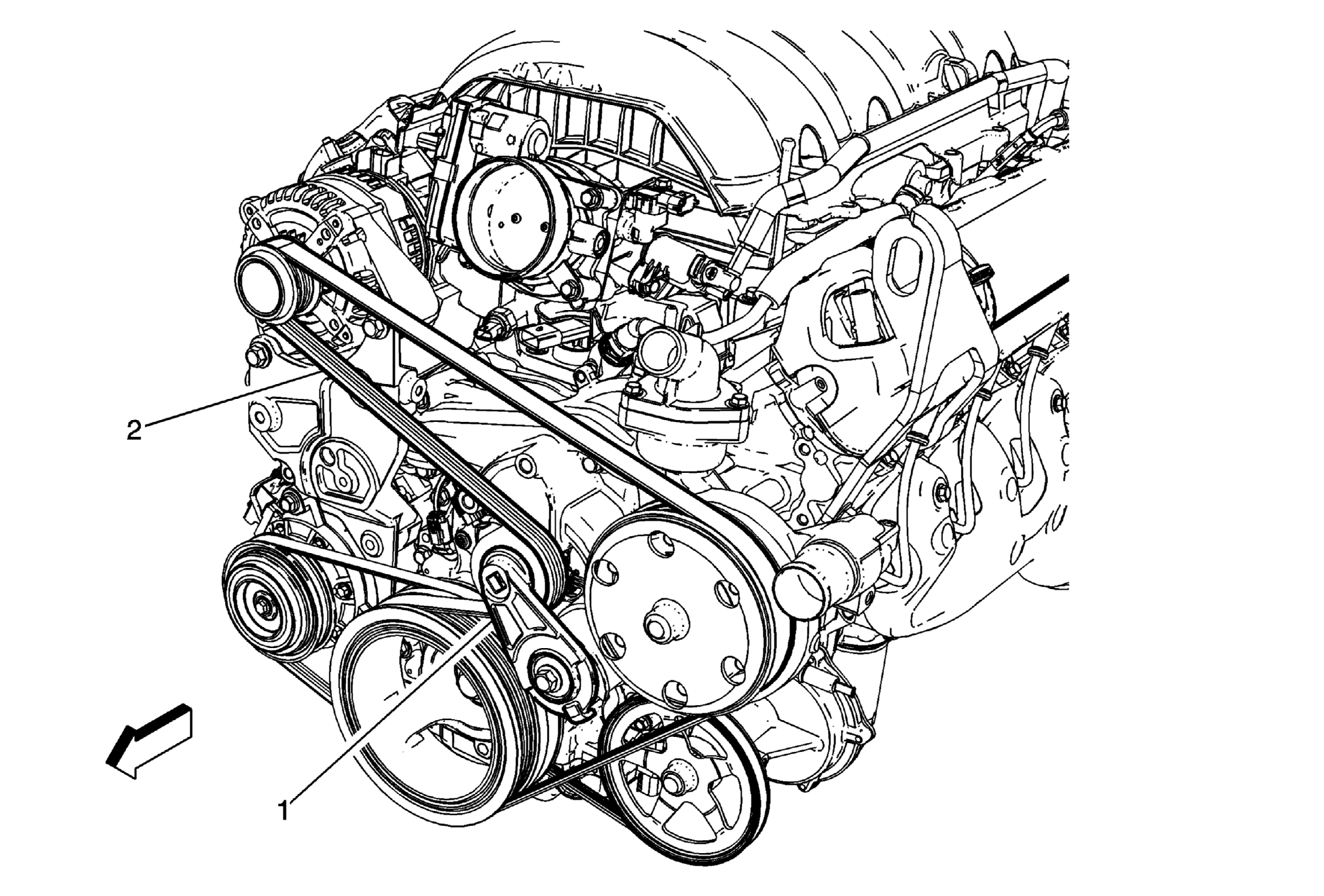

Fig 1: Accessory Drive Belt Routing
GM3230753Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Chevrolet and GMC)Air Cleaner Outlet Duct Replacement (Cadillac) .
1 Drive Belt Tensioner
Procedure
Rotate the drive belt tensioner counterclockwise to release the drive belt tension.
2 Drive Belt

Procedure

  1. Slide the drive belt off of the belt idler pulley.
  2. Slowly release the drive belt tensioner.
