X900 Liftgate Harness to Body Harness

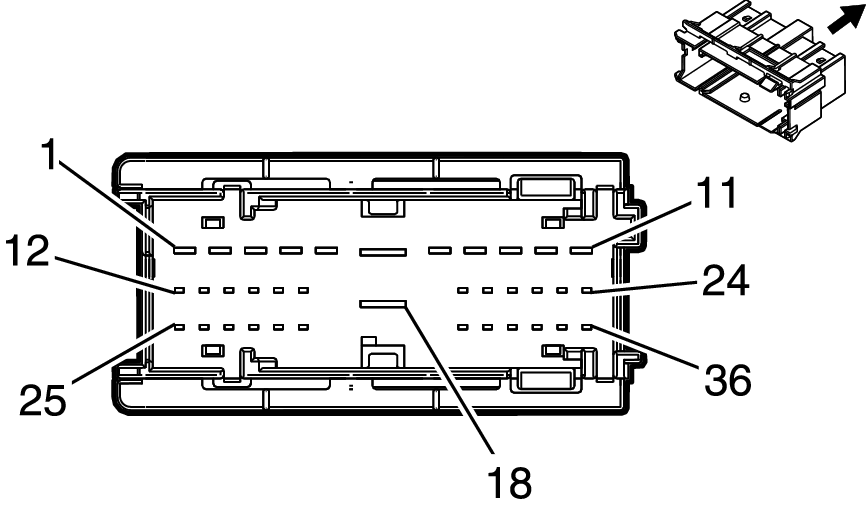

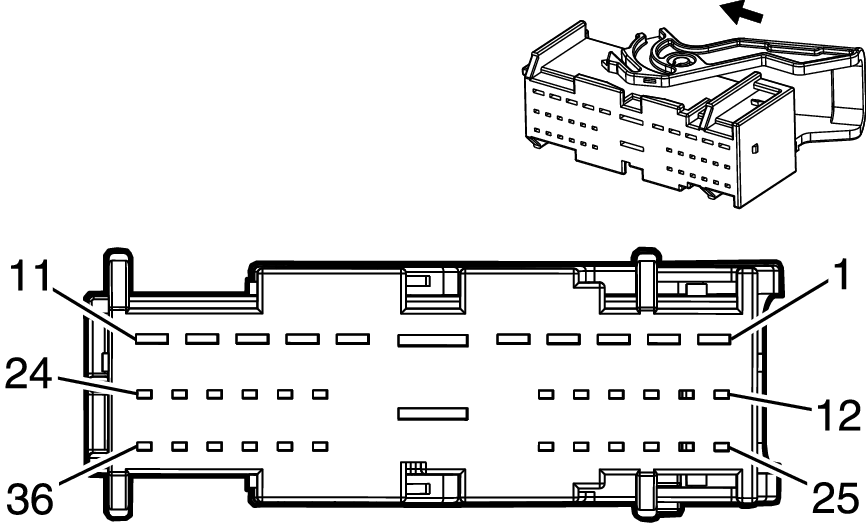

Connector Part Information Harness Type: Liftgate OEM Connector: 33196212 Service Connector: Service by Harness - See Part Catalog Description: 36-Way F 1.2 Multilock, 2.8, 6.3 YESC Series (GY)	Connector Part Information Harness Type: Body OEM Connector: 13933751 Service Connector: 19329821 Description: 36-Way M 1.5, 2.8, 6.3 Series, Sealed

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-16 (LT GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-42 (RD)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	Not Required	J-35616-4A (PU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
IV	13575823	J-35616-5 (PU)	J-38125-11A	7114-4110-02	Yazaki 9	E	C
V	13575823	J-35616-5 (PU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
VI	13575824	J-35616-5 (PU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
VII	13578908	J-35616-5 (PU)	J-38125-11A	7114-4112-02	Yazaki 9	C	D
VIII	13580023	J-35616-43 (RD)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
IX	19329830	J-35616-17 (LT GN)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	3	RD/GY	7040	III	-	Battery Positive Voltage	1	3	RD/GY	7040	VII	-
2 - 3	-	-	-	-	-	Not Occupied	2 - 3	-	-	-	-	-
4	1	BK	1450	III	-	Ground	4	1.5	BK	1450	VI	-
5	-	-	-	-	-	Not Occupied	5	-	-	-	-	-
6	2.5	BN/VT	293	II	-	Rear Defog Element Control	6	2.5	BN/VT	293	VIII	-
7	-	-	-	-	-	Not Occupied	7	-	-	-	-	-
8	0.75	RD/YE	3040	III	-	Battery Positive Voltage	8	0.75	RD/YE	3040	V	-
9	-	-	-	-	-	Not Occupied	9	-	-	-	-	-
10	0.5	GN/YE	6846	III	-	Rear License Lamp Control	10	0.5	GN/YE	6846	IV	-
11	3	BK	1450	III	-	Ground	11	3	BK	1450	VII	-
12	-	-	-	-	-	Not Occupied	12	-	-	-	-	-
13	0.5	GN	5060	I	-	Low Speed GMLAN Serial Data	13	0.5	GN	5060	IX	-
14	0.5	GY/BK	6113	I	-	Rear Lift Gate Open/Close Switch Signal	14	0.35	GY/BK	6113	IX	-
15	0.5	GN/BU	6112	I	-	Power Lift Gate On/Off Switch Signal	15	0.35	GN	6112	IX	-
16 - 17	-	-	-	-	-	Not Occupied	16 - 17	-	-	-	-	-
18	2.5	BK	1450	II	-	Ground	18	2.5	BK	1450	VIII	-
19	0.5	BU/WH	6128	I	-	Rear Closure Unlatch Motor Unlatch Control	19	0.5	BU/WH	6128	IX	-
20	0.35	BK	2550	I	-	Ground	20	0.35 0.75 0.35	BK/WH BK BK/WH	2551 2550 2551	IX IX IX	UVH UVC UVH
21	-	-	-	-	-	Not Occupied	21	-	-	-	-	-
22	0.5	RD/BU	840	I	-	Battery Positive Voltage	22	0.5	RD/BU	840	IX	-
23	-	-	-	-	-	Not Occupied	23	-	-	-	-	-
24	0.35	YE/BU	5797	I	-	Rear Closure Handle Switch Open Signal	24	0.35	YE/BU	5797	IX	-
25	0.5	BU/YE	6795	I	-	Lift Glass/Rear Compartment Lid Motor Release Control 2	25	0.5	BU/YE	6795	IX	-
26	0.35	GY/GN	6190	I	-	Lift Glass/Rear Compartment Lid Exterior Release Signal	26	0.35	GY/GN	6190	IX	-
27	0.5	GN/BN	4118	I	-	Local Interconnect Network Serial Data Bus 18	27	0.5	GN/BN	4118	IX	-
28	0.35	VT/GY	1303	I	-	Lift Gate Ajar Switch Signal 1	28	0.35	VT/GY	1303	IX	-
29	0.5	YE/OG	5797	I	-	Rear Closure Handle Switch Open Signal	29
30	0.5	GN/GY	6135	I	-	Local Interconnect Network Serial Data Bus 4	30	0.5	GN/GY	6135	IX	-
31	-	-	-	-	-	Not Occupied	31	-	-	-	-	-
32	0.35	VT/GN	1739	I	-	Run/Crank Ignition 1 Voltage	32	0.5 0.35	VT/GN WH/BN	1739 6201	IX IX	CJ4 UVH
33	0.35	WH/BU	6973	I	-	Camera Signal 2	33	0.35 0.35 0.35	WH/BU WH WH/BU	6973 7642 6973	IX IX IX	UVC UVH UVC
34	0.35	GY/YE	6972	I	-	Camera Signal 2 +	34	0.35 0.35	BU GY/YE	7641 6972	IX IX	UVH UVC
35	0.35	BARE	6974	I	-	Camera Low Reference	35	0.35 0.35	BARE BARE	6974 6799	IX IX	UVC UVH
36	0.35	GN/WH	24	I	-	Backup Lamp Control	36	0.35	GN/WH	24	IX	-
